STATIC LINE TENSIOMETERS

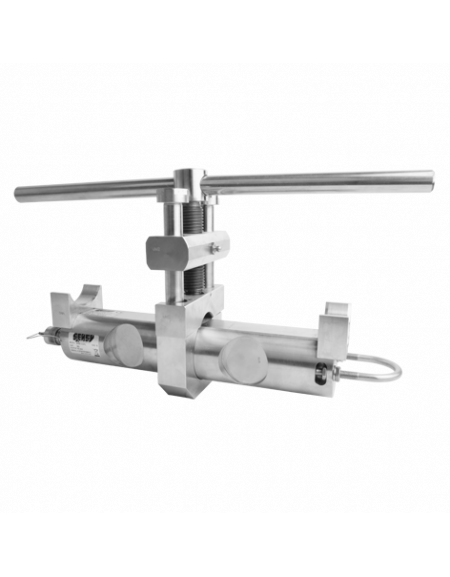

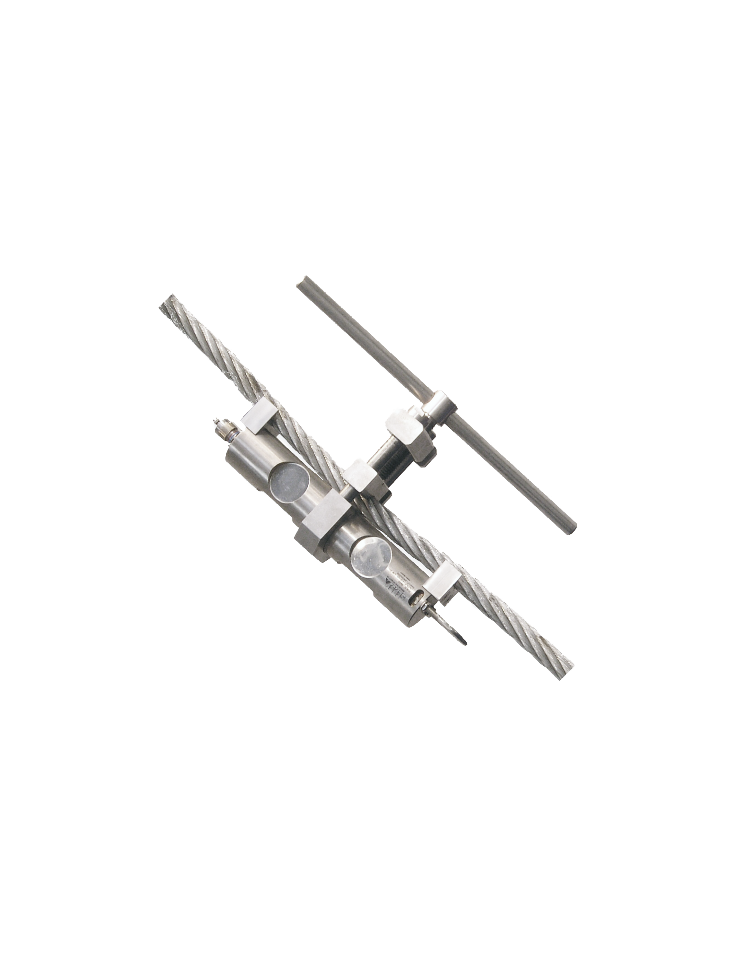

Load cells specially designed to measure the tension force applied to a static wire rope or rope fiber.

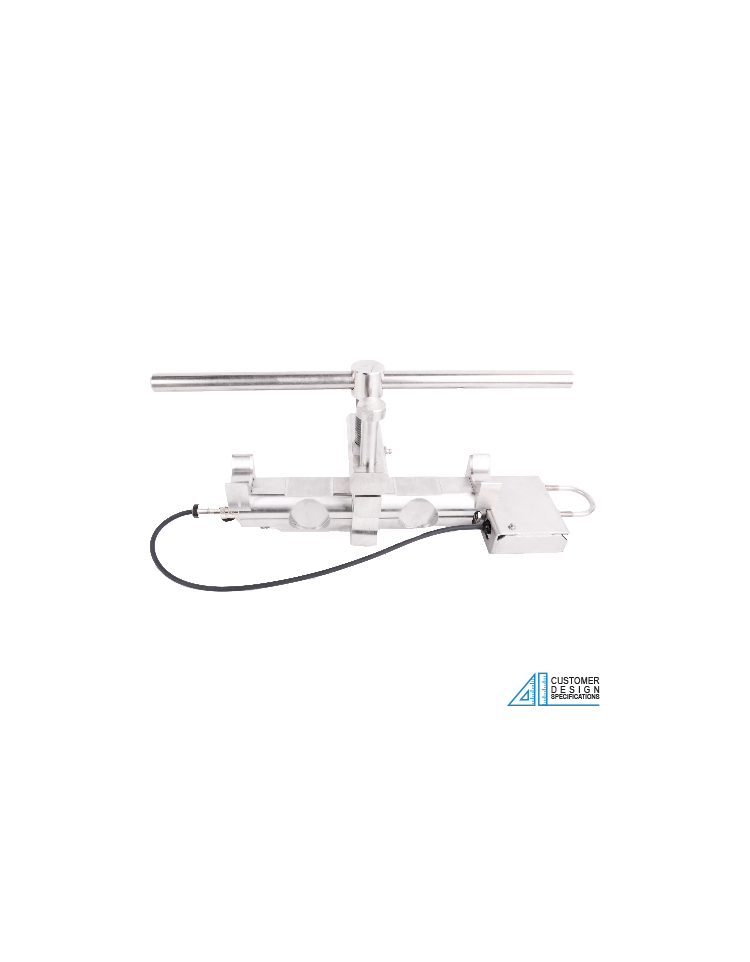

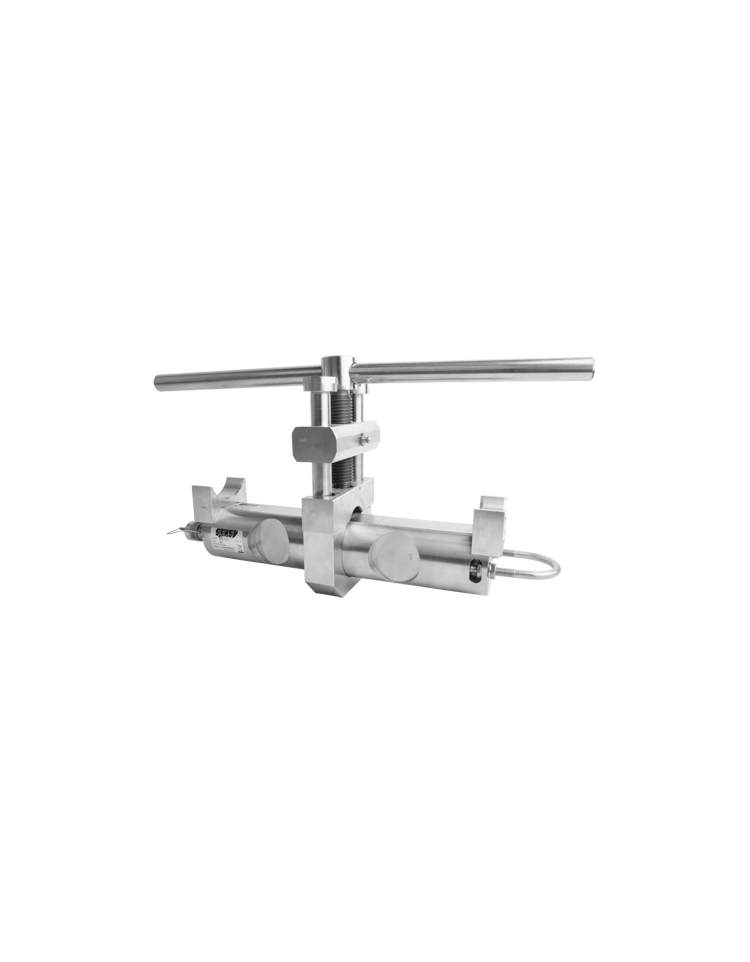

CONFIGURATOR STATIC LINE TENSIOMETER5560S
o Easy and fast mounting
o Protection class: IP67
o Wide range of cable diameters: from 3 up to 90 mm (0.11 to 3.5")
o Material:
- stainless steel (5560S)
- anodised aluminium alloy (5562S)
o Cable length: 6 m (other lengths available on request)

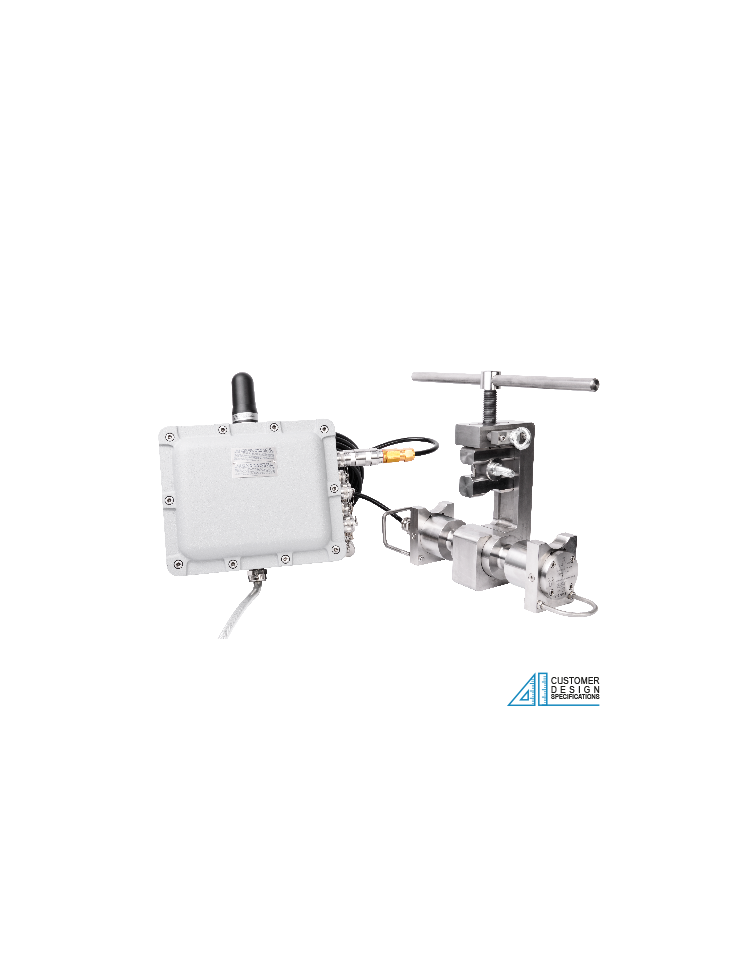

CONFIGURATOR STATIC LINE TENSIOMETER5560SAVAILABLE OPTIONS
| 2 - 5 % | |
|---|---|
| Reference temperature (°C) | 23 |
| Compensated temperature range (°C) | -10...+45 |
| Service temperature range (°C) | -30...+70 |
| Storage temperature range (°C) | -50...+85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | <± 0.1 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | <± 0.1 |
| Nominal sensitivity (mV/V) | ± 1 |
| Input resistance (ohm(s)) | 350 ± 2 |
| Output resistance (ohm(s)) | 350 ± 2 |
| Insulation resistance (50 V) (Mohm(s)) | > 5000 |
| Reference excitation voltage (VDC) | 10 |
| Permissible nominal range of excitation voltage (VDC) | 3...12 |
| Safe load limit (% F.S.*) | 200 |
| Breaking load (% F.S.*) | >300 |
| Permissible dynamic loading (% F.S.*) | 70 |
* F.S. : Full Scale.
** : can be different (depending on the wire rope)
Combined error depends on rope material and on-site calibration
Specifications subject to change without notice
