Load cells

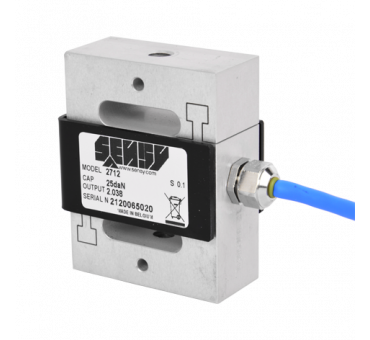

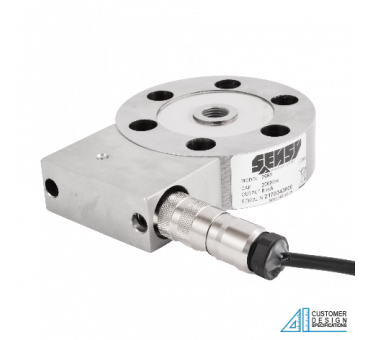

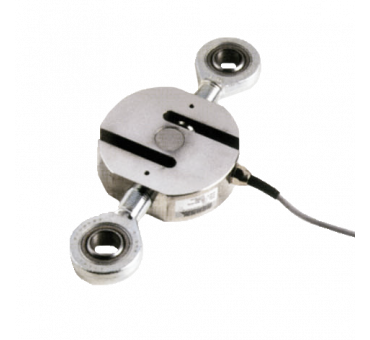

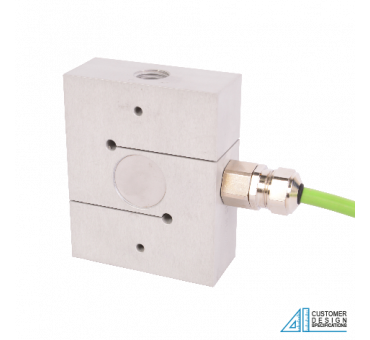

S-load cells, pancake, tension and compression
The range of SENSY force transducers is very wide. This one is characterised by a measuring range varying from 10 N to 50 MN (tension and / or compression) and an accuracy of up to 0.01%. Depending on the capacity and the environment, our force transducer models are available in the following materials: stainless steel, alloy steel, aluminum.
As is standard, SENSY manufactures ‘classic’ models: S-force sensors, miniature models, pancakes, force washers, annular sensors, etc. to which can be added many options to adapt to the conditions of use: high temperature (+ 200° C), low temperature (-50° C), explosive atmosphere, radioactivity, use under pressure, or under vacuum, etc.
These Sensy load cells are available with different output signals: unamplified analog (mV / V), amplified (V, mA), digital (RS-232, RS-485, USB, fieldbus), or wireless.
In addition, SENSY’s structure and flexibility enables it to offer custom-made force transducers to meet the most demanding requirements.
More detailed explanations on the operation of force sensors are available on our "Technology" pages.
| Accuracy | 0.1 %, 0.03 % |
| Capacity | 5 kN / 500 kg, 10 kN / 1 t,... |
| Universal load cell combining accuracy, sturdiness and easy installation | |
| Accuracy | 0.1 %, 0.03 %, 0.02 % |
| Capacity | 100 N / 10 kg, 200 N / 20... |
| High-accuracy universal load cells, easy to install. | |
| Accuracy | 0.25 %, 0.1 %, 0.03 % |
| Capacity | 5 kN / 500 kg, 7,5 kN / 750... |

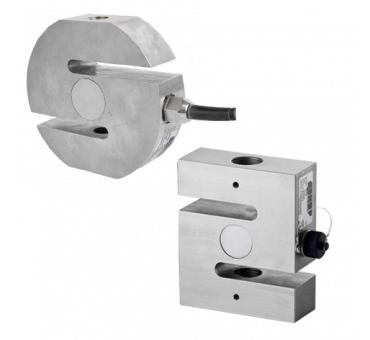

| Universal tension and compression load cells for industrial force measurements. | |

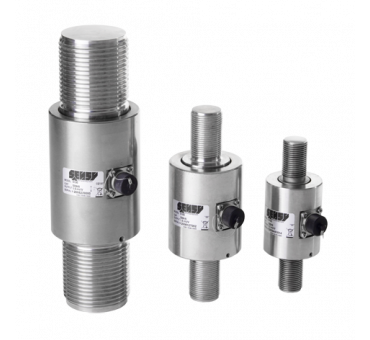

| Accuracy | 0.25 %, 0.1 %, 0.05 %, 0.03 % |
| Capacity | 30 kN, 50 kN, 100 kN, 200... |

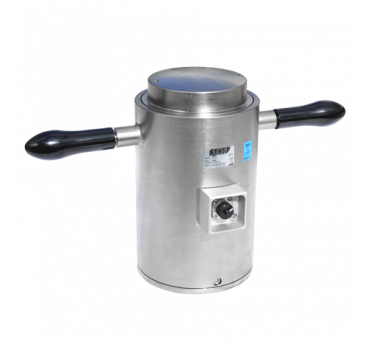

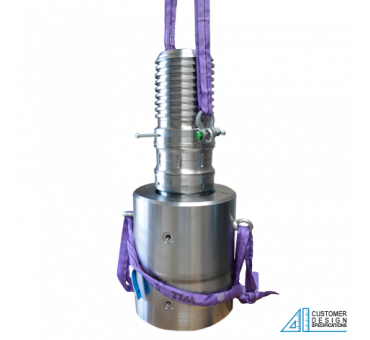

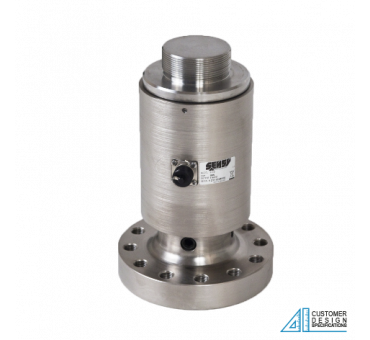

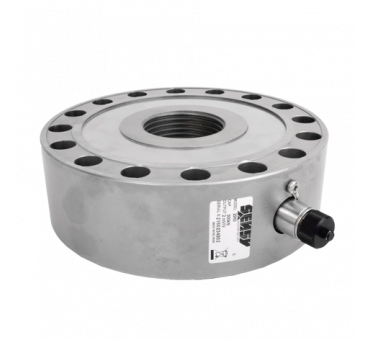

| High-capacity compression load cells. | |
| Accuracy | 0.25 %, 0.1 %, 0.05 %, 0.03 % |
| Capacity | 20 kN / 2 t, 30 kN / 3t, 50... |
| Universal load cells combining accuracy and sturdiness; easy to install. | |
| Accuracy | SL |
| Capacity | 20 kN / 2 t, 30 kN / 3t, 50... |

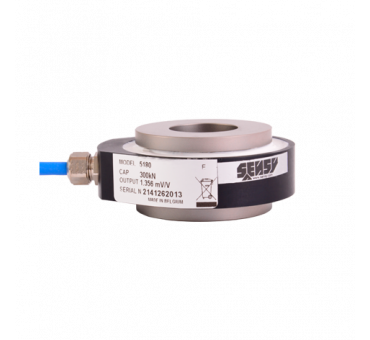

| Washer load cells (annular load cells) specially designed for force measurement on bolts. | |
| Accuracy | SL |
| Capacity | 200 kN / 20 t, 300 kN / 30... |

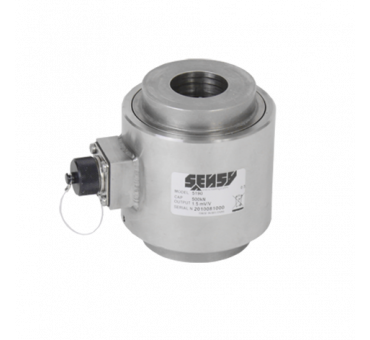

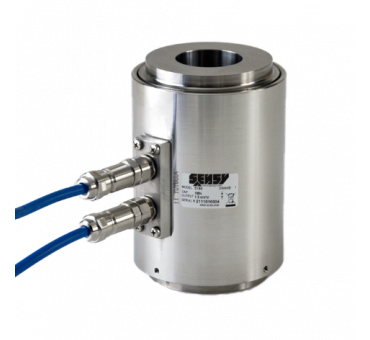

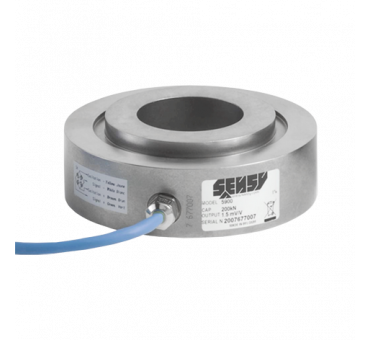

| Through hole load cells, donut load cells or annular load cells | |
| Accuracy | 1 % |
| Capacity | 200 N / 20 kg, 300 N / 30... |

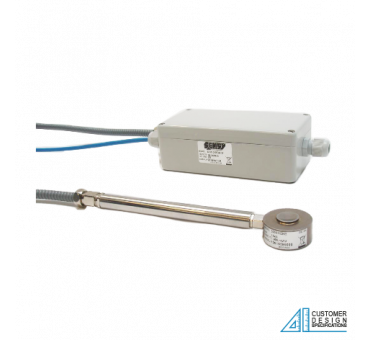

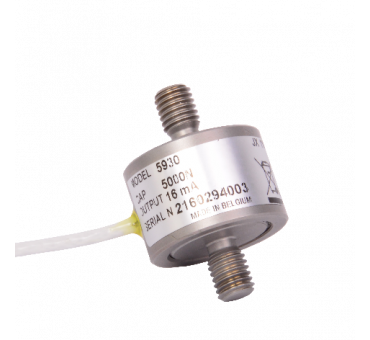

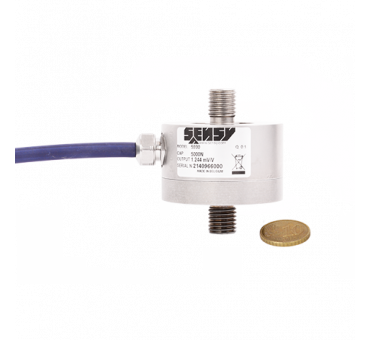

| Miniature load cells (tension and compression). | |
| Accuracy | 1 % |
| Capacity | 200 N / 20 kg, 300 N / 30... |

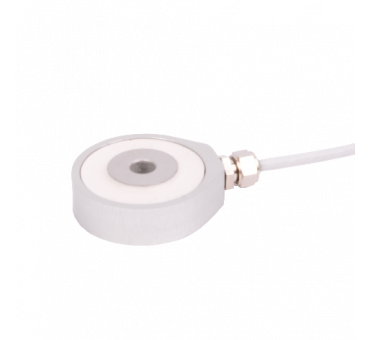

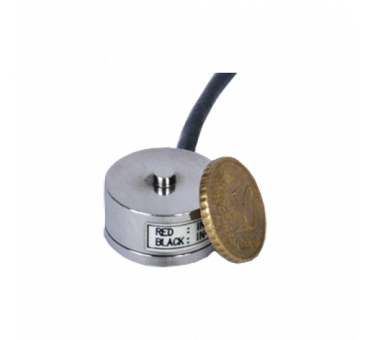

| Miniature load cells (compression). | |
| Accuracy | A3, 0.03 %, C 3 |
| Capacity | 100 N / 10 kg, 200 N / 20... |

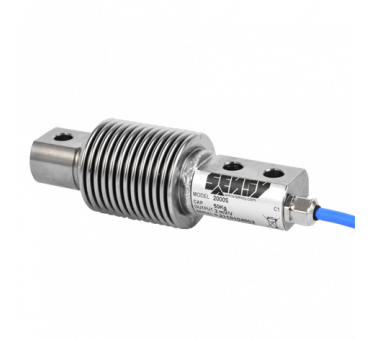

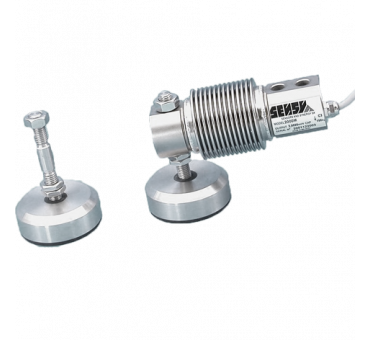

| High-end load cell combining high accuracy with high resistance in harsh environment. | |
| Accuracy | A3, 0.03 % |
| Capacity | 20 N / 2 Kg, 50 N / 5 Kg,... |

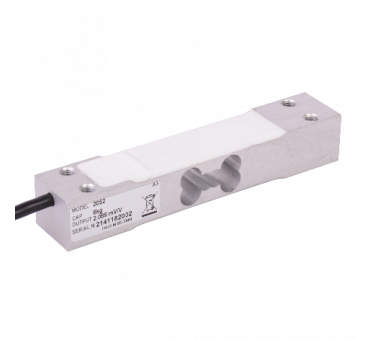

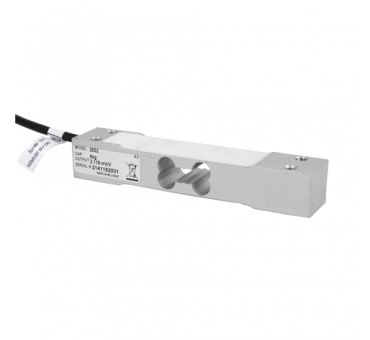

| Low capacity single point load cell | |
| Accuracy | 0.5 % |
| Capacity | 10 t / 20 klb, 50 t / 100 klb |

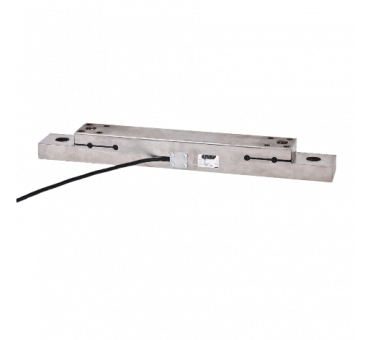

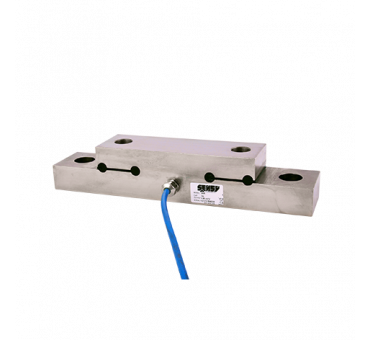

| Load cells specially designed for on-board weighing on trucks. | |
| Accuracy | 0.5 % |
| Capacity | de 75 kN à 5 Mn, de 7.5t à... |

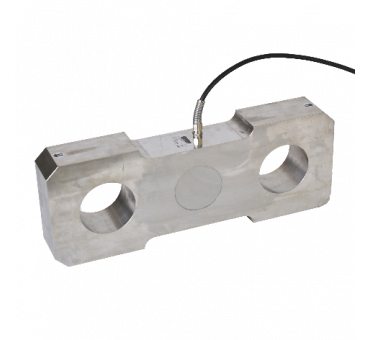

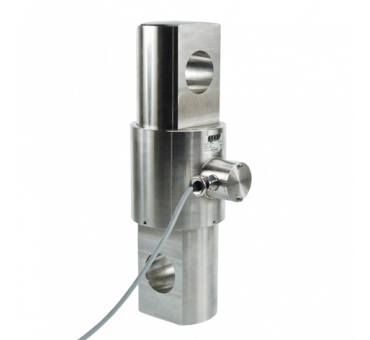

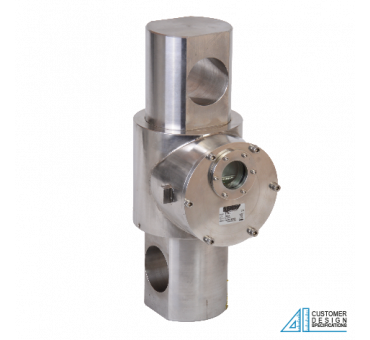

| Load link / Tension load cells. | |
| Accuracy | 0.25 %, SL - HOIST |
| Capacity | 10 t / 20 klb, 50 t / 100... |

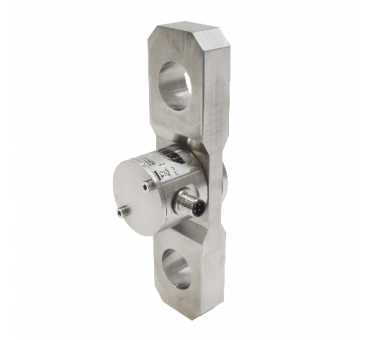

| Robust and easy-to-install tension load cells | |
| Accuracy | SL - FORCE, SL - HOIST, SL... |
| Capacity | 0,5 t, 1 t, 2 t, 3 t, 10 t,... |

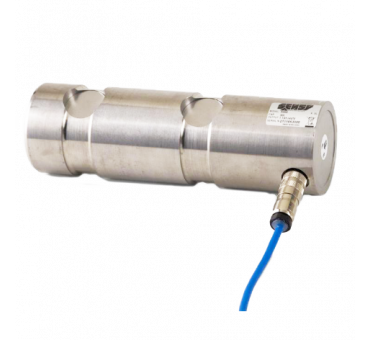

| Load pins with standard dimensions. | |
| Accuracy | SL - FORCE, SL - HOIST, SL... |
| Capacity | from 0.5 to 2000 t |

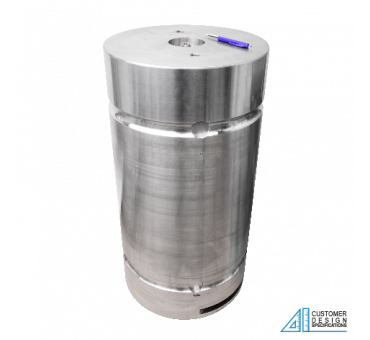

| Custom-made load pin designed to be installed at the same place of a common axle without any big changes of the existing mechanical... | |
| Accuracy | SL - HOIST, SL - FORCE |
| Capacity | from 0.5 to 2000 t |

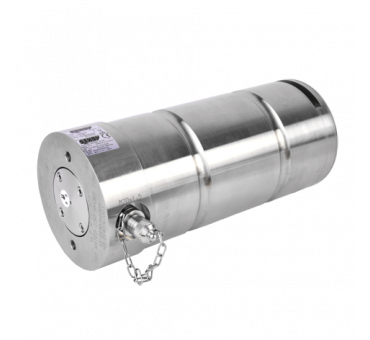

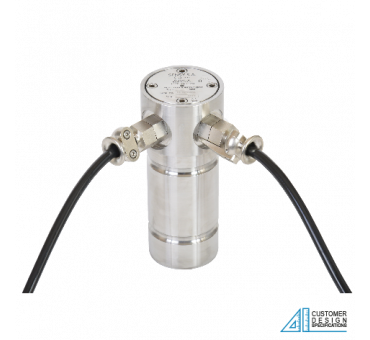

| Custom-made load pin for subsea applications. | |
| Accuracy | 0.25 %, SL - FORCE, SL - HOIST |
| Capacity | 3 kN, 5 kN, 0,5 t, 10 kN, 1... |

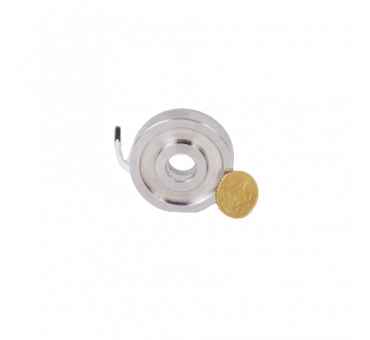

| Annular force transducer specially designed for applications requiring a centred hole. | |
| Accuracy | 2 - 5 % |
| Capacity | de 2 t à 75 t |

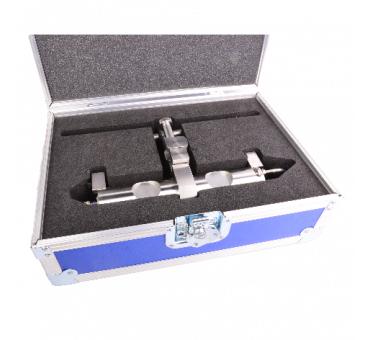

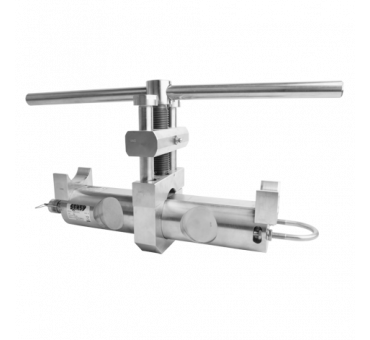

| Static line tensiometer specially designed to measure the tension force applied to a cable or a rope. | |
| Accuracy | 2 - 5 % |
| Capacity | From 0.4 to 40 t (up to 600 t) |

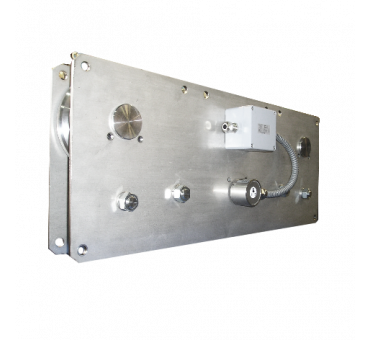

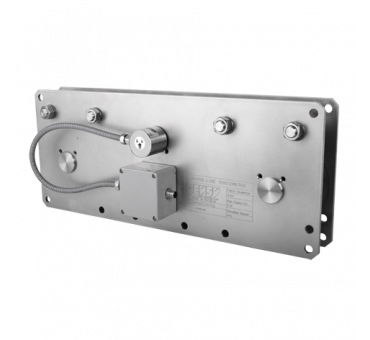

| Running line tensiometers designed to measure the tension force of a running rope. | |
| Accuracy | 2 - 5 % |
| Capacity | From 0.4 to 40 t (up to 600 t) |

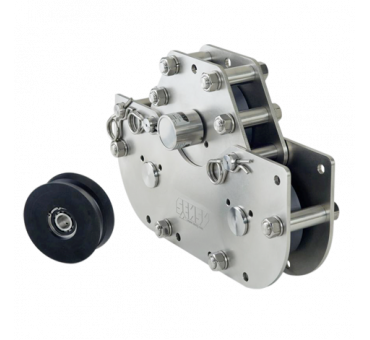

| Running line tensiometers designed to measure the tension force of a running rope with removable center sheave to allow an easy installation. | |
Associated electronics
| Universal large panel meters to be used with transducers and process signals. |
| Universal panel meters for using with load cells and process signals. |
| Panel meters with dual line display for Wheatstone bridge sensors |
| Dual independent process input meter. |
| Conditioner-amplifier with 4..20 mA and -10..0..10 V output. |
| Conditionner-amplifier with 4..20 mA and 0..10 V output. |

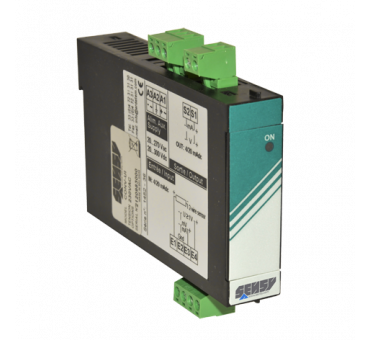

| Analogue voltage and current signal converter with galvanic isolation. |

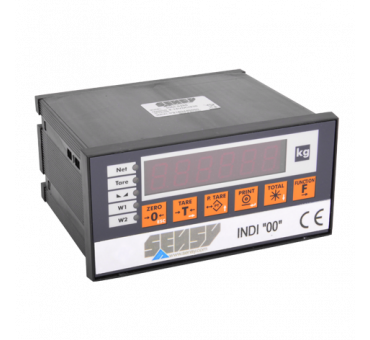

| Very high accuracy digital indicator designed for weighing applications. |
| Hand-held indicator for transducer with mV/V output. |
| Radio transmitter for analogue signals (mV/V, 4..20 mA, 0..10 V). |
| Hand-held wireless indicator. |
| Radio receiver with analogue output (4..20 mA, 0..10 V). |
| Base stations designed to connect wireless load cell (WI-T24TR-xxx) |
| Base station designed to connect up to 8 wireless load cells (WI-T24TR-xxx) |
| Converts the signal from the Wheatstone bridge (mV/V) into a robust industrial standardised 4 to 20 mA signal. |
| Convert the signal from a Wheatstone bridge (mV/V) into a standardised digital signal RS-232, RS-485 or USB. |
| Converts the signal from a Wheatstone bridge (mV/V) into a standardised digital signal RS-232, RS-485 or USB. |

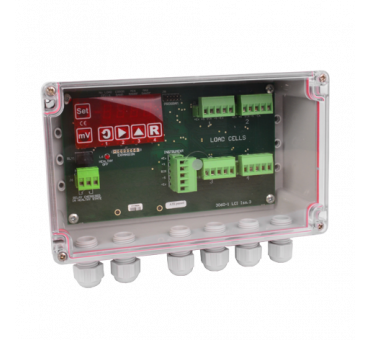

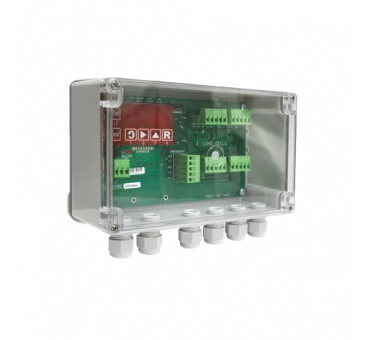

| Smart junction box designed for parallel connecting of 2 to 4 load cells to an electronics and to ensure the monitoring of their correct functioning. |
| Large digital displays for distance reading |
