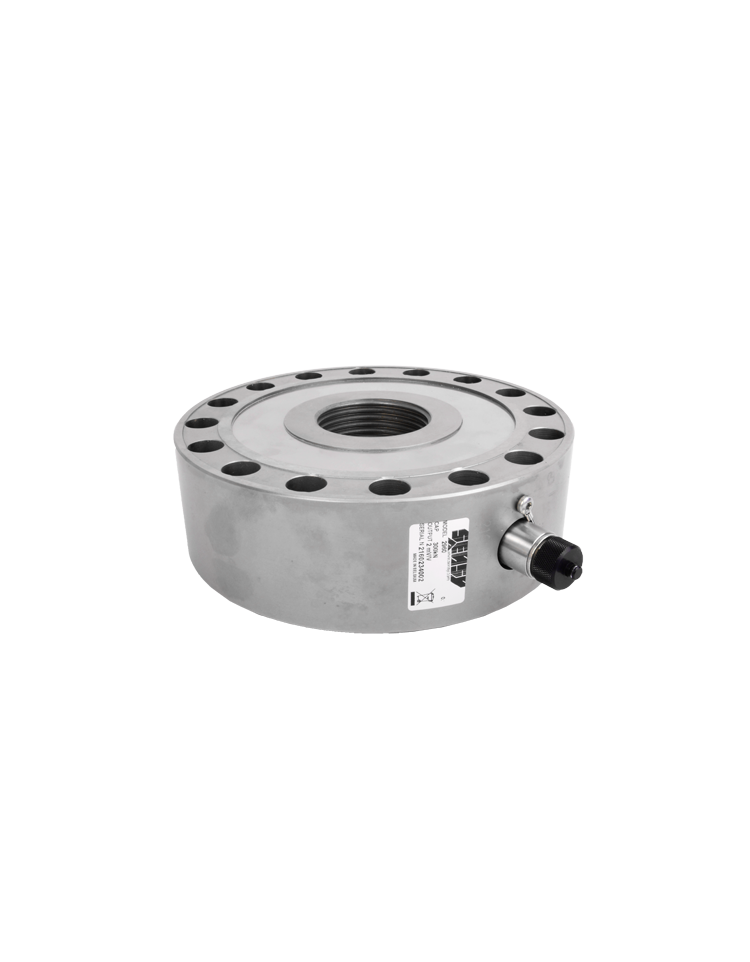

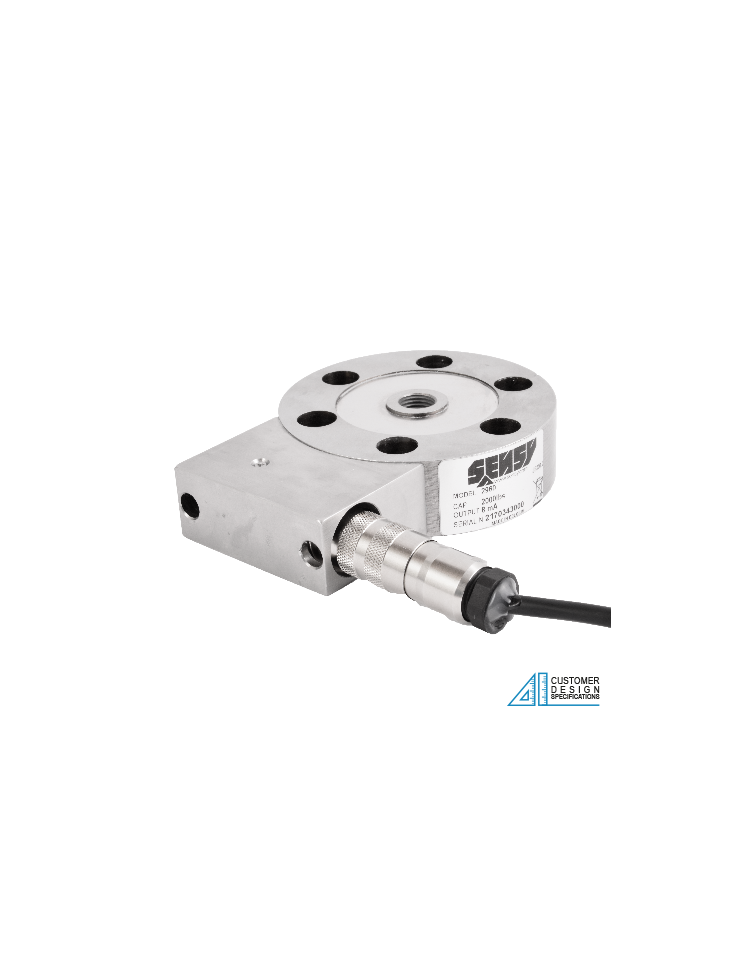

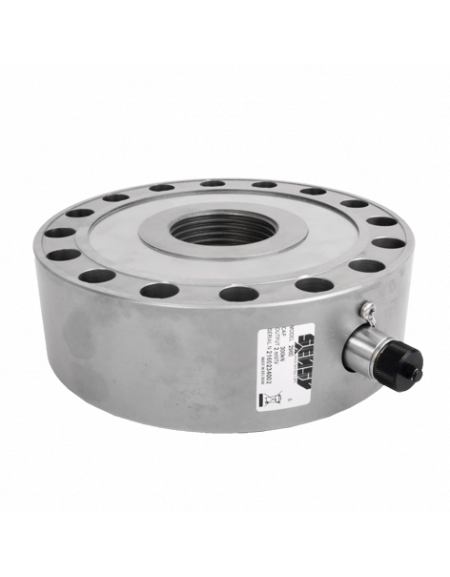

LOW-PROFILE (PANCAKE) LOAD CELLS
Universal tension and compression load cells for industrial force measurement.
o Flat design
o High stiffness and fatigue resistant
o Highly resistant to transverse forces
o Protection class: IP66
o Complete range of mounting accessories available
o Material: stainless steel (2960)**, anodised aluminium alloy (2962), alloy steel (2965)
o Cable length: see drawing table - CL (other lengths available on request)
AVAILABLE OPTIONS
| 0.25 % | 0.1 % | 0.03 % | |
|---|---|---|---|
| Accuracy class (-) | 0.25 % F.S. | 0.1% F.S. | 0.03 % F.S. |
| Combined error (non-linearity + hysteresis) (% F.S.*) | <± 0.25 | < ± 0.1 | <± 0.03 |
| Repeatability error (% F.S.*) | <± 0.1 | <± 0.03 | <± 0.015 |
| Creep error over 30 min. (% F.S.*) | <± 0.1 | <± 0.06 | <± 0.025 |
| Reference temperature (°C) | 23 | 23 | 23 |
| Compensated temperature range (°C) | -10...+45 | -10...+45 | -10...+45 |
| Service temperature range (°C) | -25...+70 | -25...+70 | -25...+70 |
| Storage temperature range (°C) | -50...+85 | -50...+85 | -50...+85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | <± 0.05 | <± 0.05 | <± 0.015 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | <± 0.035 | <± 0.035 | <± 0.023 |
| Nominal sensitivity (mV/V) | 2 | 2 | 2 |
| Sensitivity tolerance (%) | <± 0.3 | <± 0.3 | <± 0.2 |
| Input resistance (ohm(s)) | 700 ± 2 | 700 ± 2 | 700 ± 2 |
| Output resistance (ohm(s)) | 700 ± 2 | 700 ± 2 | 700 ± 2 |
| Insulation resistance (50 V) (Mohm(s)) | > 5000 | > 5000 | > 5000 |
| Reference excitation voltage (VDC) | 10 | 10 | 10 |
| Permissible nominal range of excitation voltage (VDC) | 3...12 | 3...12 | 3...12 |
| Safe load limit (% F.S.*) | 150 | 150 | 150 |
| Breaking load (% F.S.*) | >300 | >300 | >300 |
| Permissible dynamic loading (% F.S.*) | 70 | 70 | 70 |
| Static lateral force limit (% F.S.*) | 50 | 50 | 50 |
* F.S. : Full Scale.
** CSA and IECEx options are available only for stainless steel (2960) version.
Note: 0.03% only for anodised aluminium alloy (2962) version.
Specifications subject to change without notice.
