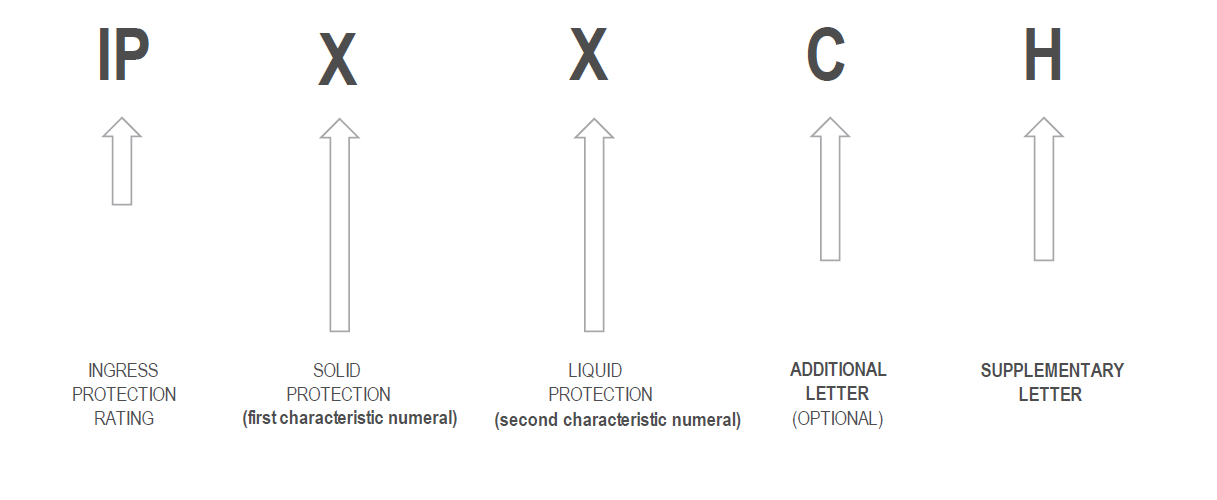

International Protection Marking in accordance with DIN EN IEC 60529
The IP degree of protection determines the degree of protection of the material against penetration of solid bodies (1st digit), liquids (2nd digit) or an additional letter.
| First characteristic numeral | Description |
|---|---|
| 0 | Non-protected |
| 1 | Protected against solid foreign objects of 50 mm diameter or greater |
| 2 | Protected against solid foreign objects of 12.5 mm diameter or greater |
| 3 | Protected against solid foreign objects of 2.5 mm diameter or greater |
| 4 | Protected against solid foreign objects of 1 mm diameter or greater |
| 5 | Dust-protected |
| 6 | Dust-tight |
| Additional letter | Description |
|---|---|
| A | Protected against access with the back of the end |
| B | Protected against access with a finger |
| C | Protected against access with a tool |
| D | Protected against access with a wire |
| Second characteristic numeral | Description |
|---|---|
| 0 | Non-protected |
| 1 | Protected against vertically falling water drops |
| 2 | Protected against vertically falling water drops when enclosure tilted up to 15° |
| 3 | Protected against spraying water |
| 4 | Protected against splashing water |
| 5 | Protected against water jets |
| 6 | Protected against powerful water jets |
| 6k(1) | Protected against powerful water jets with increased pressure |
| 7 | Protected against the effects of temporary immersion in water (≤1m) |
| 8 | Protected against the effects of continuous immersion in water (>1m) |
| 9(1) | Protected against the effects of powerful water jets at high temperature |
(1) : All test with letter K are defined by ISO 20653 (replacing DIN 40050-9)
| Supplementary letter | Description |
|---|---|
| H | High-voltage equipment |
| M | Device moving during water test |
| S | Device standing still during water test |
| W | Weather conditions |
