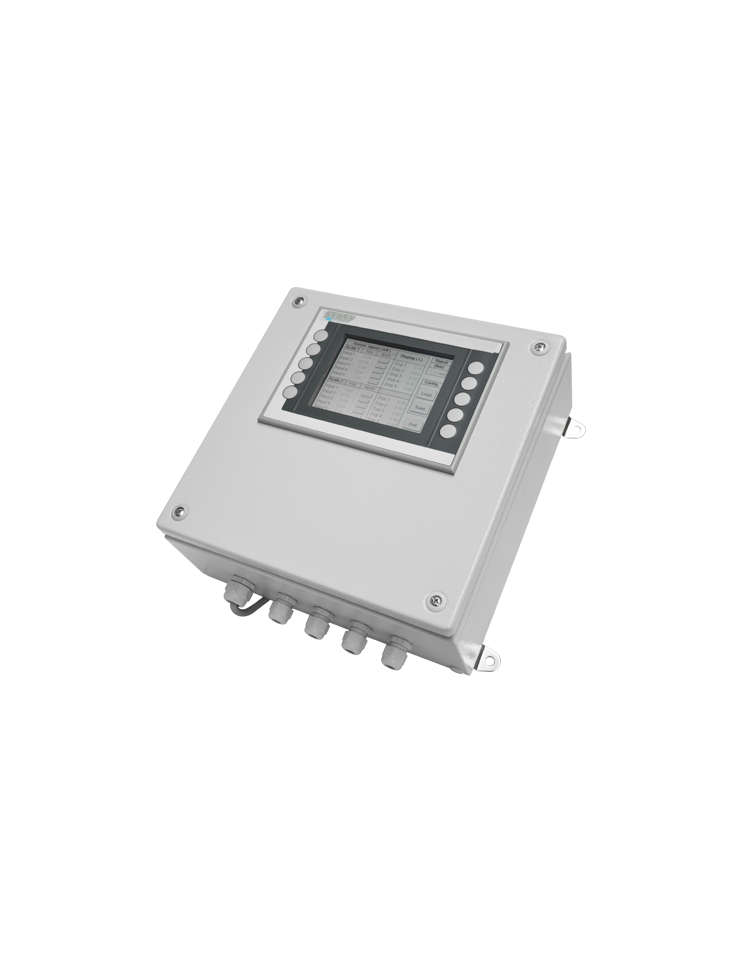

DISPLAY FOR RUNNING LINE TENSIOMETERS
3-channel display specially designed to work in combination with SENSY running line tensiometers 5570, 5575, 5580 and 5585 for winches and running cables in order to display the tensile load, the speed and the pay-out.
- communication output RS-232, RS-485
- analogue output 4 (0)...20 mA or 0...10 V
- relay output 2 or 4 FORM-C (5 A, 230 VAC resistive load)
- power supply: 110 & 230 VAC (50 - 60 Hz)
o Inputs:
- force transducer
- payout sensor
o Digital displays and bar graphs:
- force
- speed
- payout
o Data transmission
AVAILABLE OPTIONS
- data logging (download by USB stick or Ethernet network)- communication output RS-232, RS-485
- analogue output 4 (0)...20 mA or 0...10 V
- relay output 2 or 4 FORM-C (5 A, 230 VAC resistive load)
- power supply: 110 & 230 VAC (50 - 60 Hz)
DISP-RLT | |
---|---|
Input force signal (-) | 4...20 mA |
Input payout signal (-) | Absolute encoder SSI |
Display (-) | Touchscreen 5.7'' color |
Accuracy (% F.S.*) | 0.1 |
A/D converter (-) | 20 ms |
Service temperature range (°C) | 0...+50 |
Storage temperature range (°C) | -20...+70 |
Power supply (-) | 24 VDC +- 20 % |
Dimensions (mm) | 300 x 300 x 120 |
IP rating (-) | IP65 |
*F.S. : Full Scale.
** : powered 24 VDC.
Specifications subject to change without notice.
