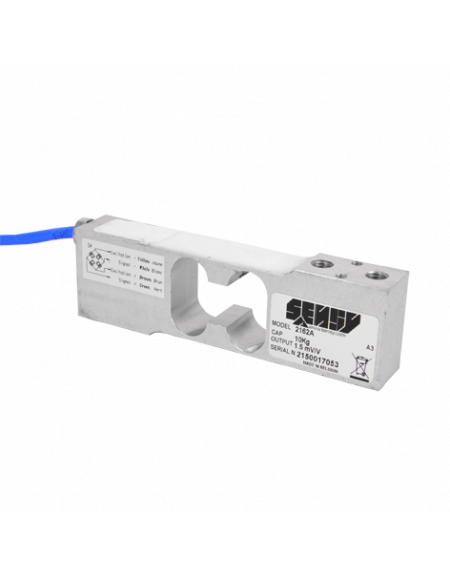

SINGLE POINT LOAD CELLS "OFF CENTER"
Economical single point load cells specially designed for small platform and hopper weighing.
o Designed for off-center load
o Maximum platform size: 400 x 400 mm
o Material: anodised aluminium alloy
o Protection class: IP63
o Competitive price
o Easy to install
o Weight: 0.35 kg
o Cable length: 2 m (other lengths available on request)
AVAILABLE OPTIONS
| A3 | |
|---|---|
| Accuracy class (-) | 0.03 % F.S. |
| Combined error (non-linearity + hysteresis) (% F.S.*) | <± 0.03 |
| Repeatability error (% F.S.*) | <± 0.015 |
| Creep error over 30 min. (% F.S.*) | <± 0.03 |
| Reference temperature (°C) | 23 |
| Compensated temperature range (°C) | -10...+45 |
| Service temperature range (°C) | -30...+70 |
| Storage temperature range (°C) | -50...+85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | < ± 0.1 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | < ± 0.05 |
| Zero balance (mV/V) | ± 0.02 |
| Nominal sensitivity (mV/V) | 2 ± 10% |
| Sensitivity tolerance (%) | <± 0.2 |
| Input resistance (ohm(s)) | 350 ± 2 |
| Output resistance (ohm(s)) | 350 ± 2 |
| Insulation resistance (50 V) (Mohm(s)) | > 5000 |
| Reference excitation voltage (VDC) | 10 |
| Permissible nominal range of excitation voltage (VDC) | 3..12 |
| Safe load limit (% F.S.*) | 150 |
| Breaking load (% F.S.*) | >300 |
| Permissible dynamic loading (% F.S.*) | 60 |
| Static lateral force limit (% F.S.*) | 100 |
* F.S. : Full Scale.
** : except thermal drifts.
Specifications subject to change without notice.
