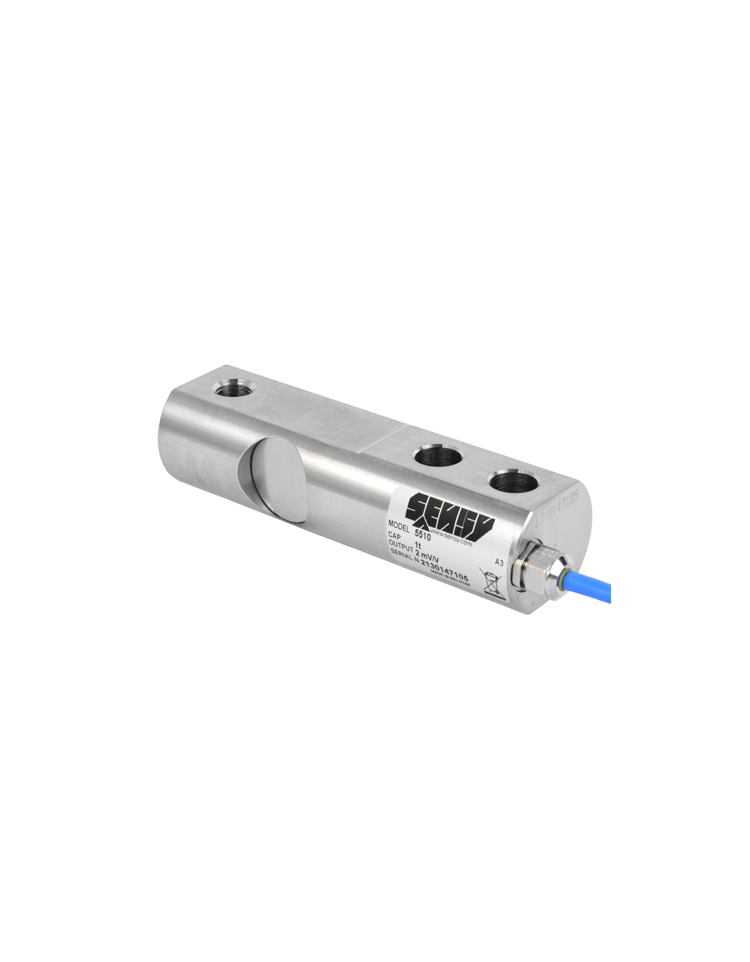

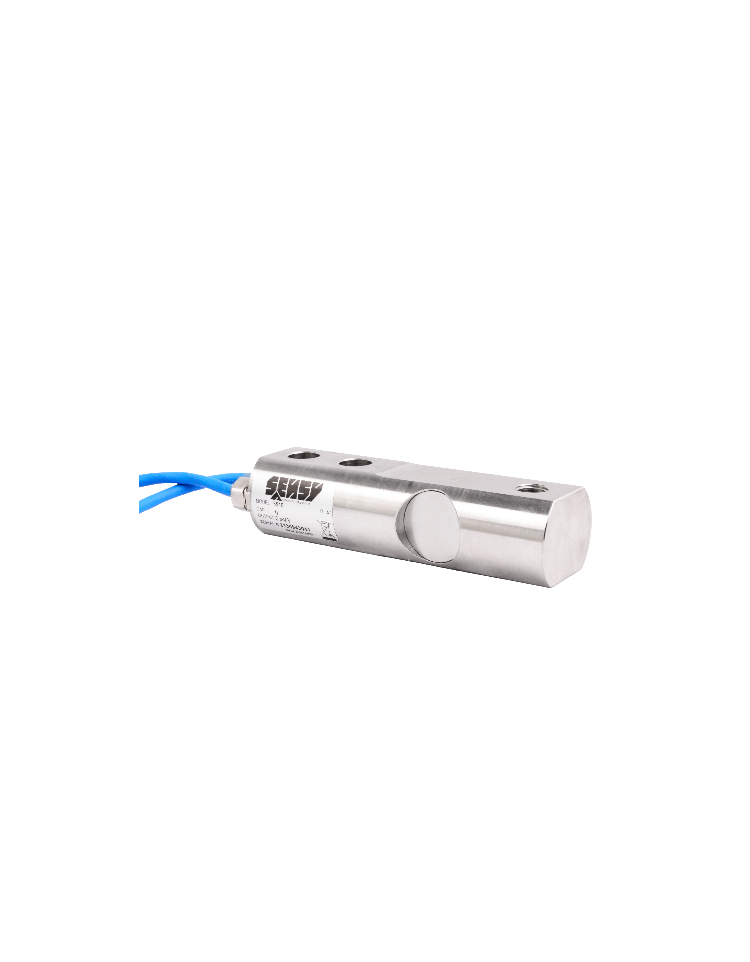

SHEAR BEAM LOAD CELL
5510
Universal load cell combining sturdy design, high accuracy and low cost.
o Material: stainless steel
o Protection class: IP67
o Sturdy design
o Complies with OIML / R60 up to 3000 d for scales in class III (EN 45501)

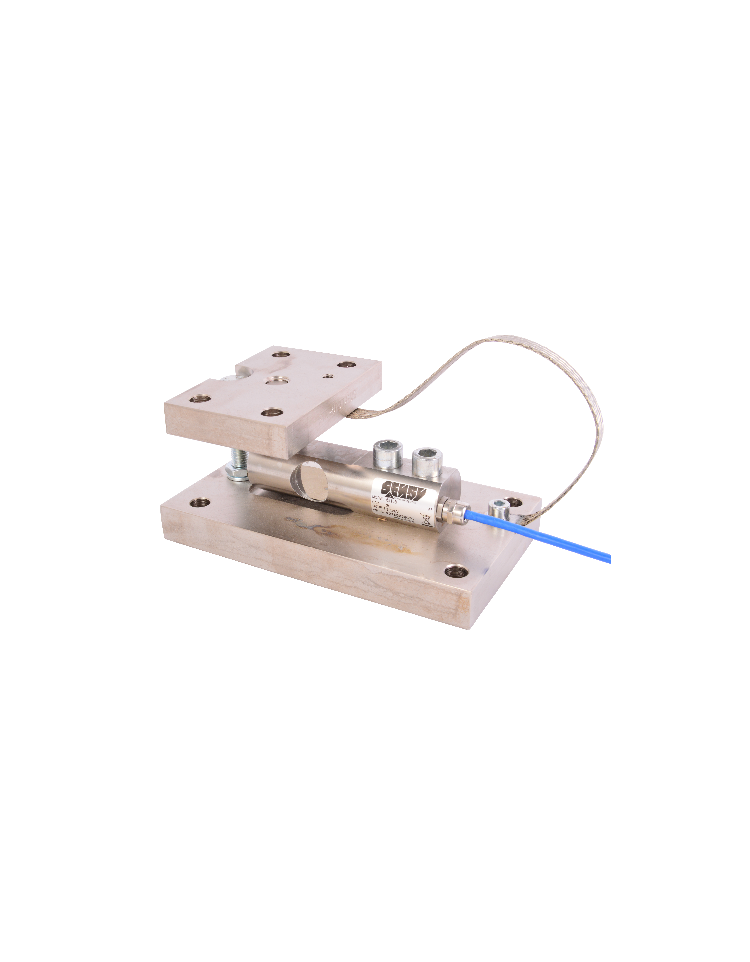

o Mounting kits available with following properties:
- stabilisation without tension rods
- compensation for thermal dilatations and default of parallelism
o Cable length: 8 m (other lengths available on request)
AVAILABLE OPTIONS
| A3 | 0.03 % | C 3 | |
|---|---|---|---|
| Accuracy class (-) | 0.03 % F.S. | 0.03 % F.S. | 3000 d OIML |
| Combined error (non-linearity + hysteresis) (% F.S.*) | <± 0.03 | <± 0.03 | <± 0.02 |
| Repeatability error (% F.S.*) | <± 0.015 | <± 0.015 | <± 0.01 |
| Creep error over 30 min. (% F.S.*) | <± 0.03 | <± 0.025 | <± 0.02 |
| Reference temperature (°C) | 23 | 23 | 23 |
| Compensated temperature range (°C) | -10...+45 | -10...+45 | -10...+45 |
| Service temperature range (°C) | -30...+70 | -30...+70 | -30...+70 |
| Storage temperature range (°C) | -50...+85 | -50...+85 | -50...+85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | <± 0.05 | <± 0.015 | <± 0.009 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | <± 0.05 | <± 0.023 | <± 0.013 |
| Nominal sensitivity (mV/V) | 2 | 2 | 2 |
| Sensitivity tolerance (%) | <± 0.2 | <± 0.2 | <± 0.1 |
| Input resistance (ohm(s)) | 350 ± 2 | 350 ± 2 | 350 ± 2 |
| Output resistance (ohm(s)) | 350 ± 2 | 350 ± 2 | 350 ± 2 |
| Insulation resistance (50 V) (Mohm(s)) | > 5000 | > 5000 | > 5000 |
| Reference excitation voltage (VDC) | 10 | 10 | 10 |
| Permissible nominal range of excitation voltage (VDC) | 3..12 | 3...12 | 3...12 |
| Safe load limit (% F.S.*) | 150 | 150 | 150 |
| Breaking load (% F.S.*) | >300 | >300 | >300 |
| Permissible dynamic loading (% F.S.*) | 50 | 50 | 50 |
| Static lateral force limit (% F.S.*) | 100 | 100 | 100 |
* F.S. : Full Scale.
** : except thermal drifts
Specifications subject to change without notice.
