3100p pendular compression load cell 0

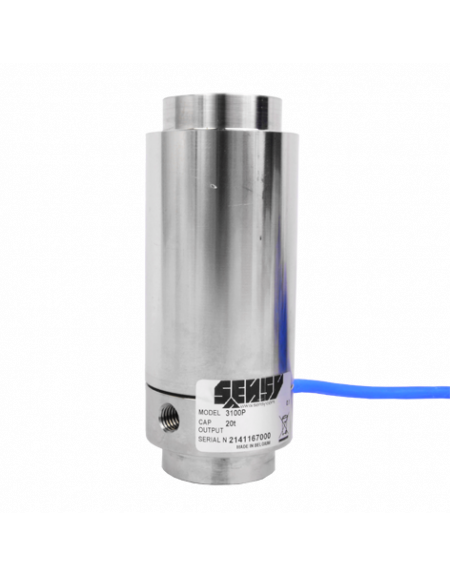

PENDULAR COMPRESSION LOAD CELLS

ADD
TO COMPARE PDF
DATASHEET
CE ATEX OIML

Compression load cells

o Canister, high-capacity load cell (up to 500 t)
o Made completely of stainless steel
o Protection class: IP67
o Pendular technology - Self-restoring
o Available in C1.5 (1500 d) OIML / R 60 (EN 45501)
o Matched impedance and sensitivity (for parallel connection)

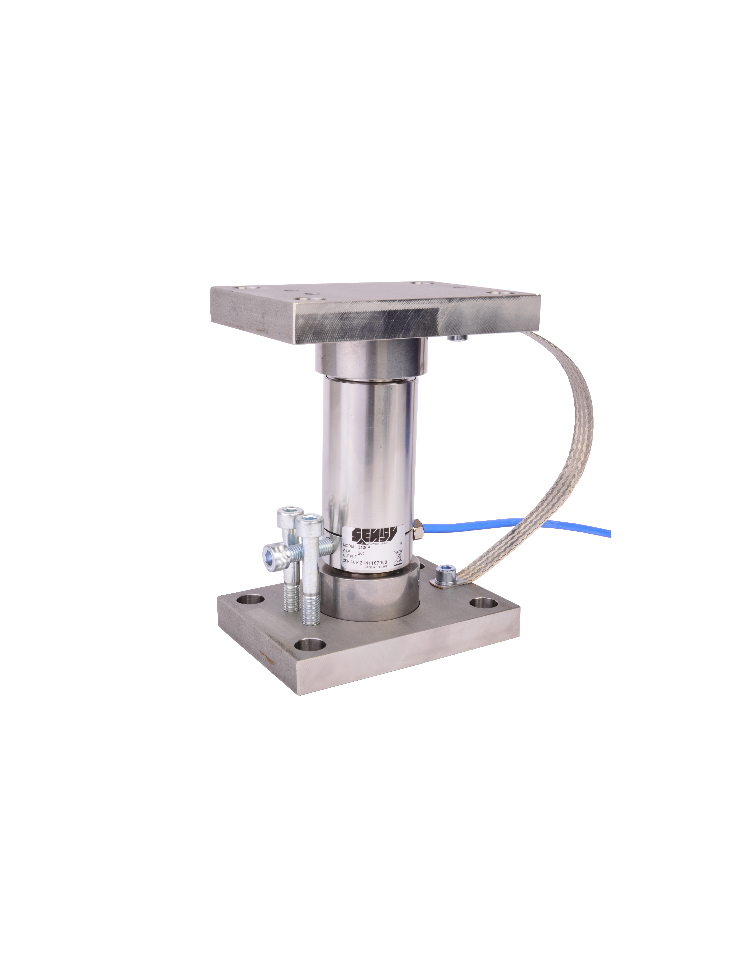

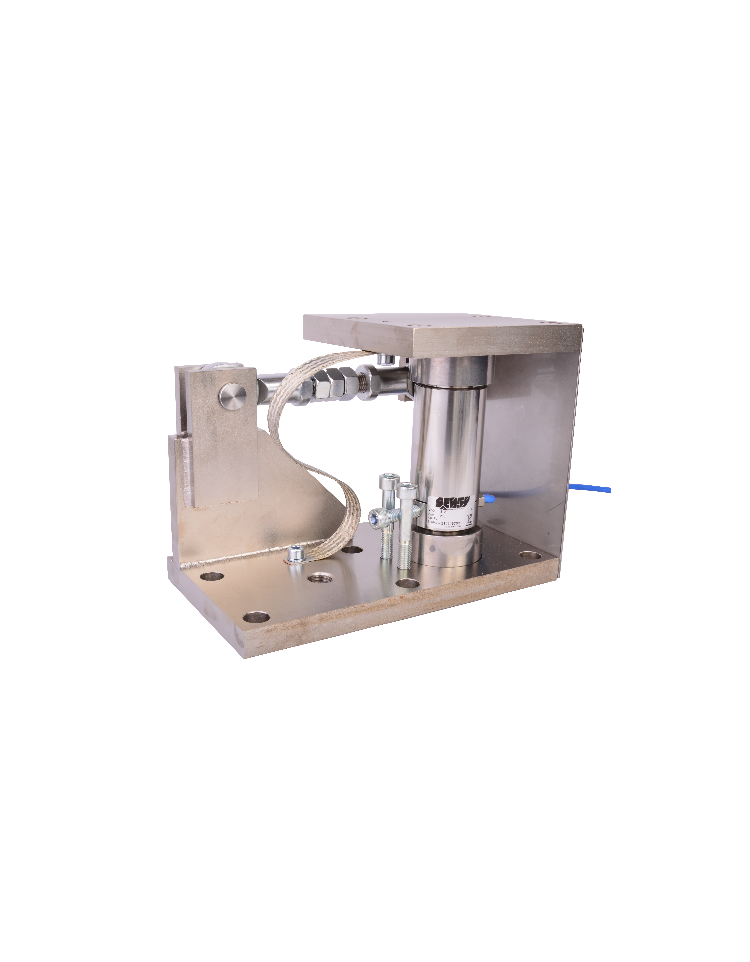

o Whole range of mounting accessories is available
o Cable length: 12 m (500 t: 20 m) (other lengths available on request)


AVAILABLE OPTIONS

DUAL-BRIDGE
AMPLIFIED-OUTPUT
DIGITAL-OUTPUT
EXi
-50+150
IP68
Do you have
specific need ?
Add to basket
for quotation

0.25 %0.1 %C 1.50.03 %
Accuracy class (-)
 0.25 % F.S. 0.1% F.S. 1500 d OIML 0.03 % F.S.
Combined error (non-linearity + hysteresis) (% F.S.*) <± 0.25 < ± 0.1 <± 0.035 <± 0.03
Repeatability error (% F.S.*) <± 0.1 <± 0.03 <± 0.015 <± 0.015
Creep error over 30 min. (% F.S.*) <± 0.1 <± 0.06 <± 0.035 <± 0.025
Reference temperature (°C) 23 23 23 23
Compensated temperature range (°C) -10...+45 -10...+45 -10...+45 -10...+45
Service temperature range (°C)
 -30...+70 -30...+70 -30...+70 -30...+70
Storage temperature range (°C)
 -50...+85 -50...+85 -50...+85 -50...+85
Temperature coefficient of the sensitivity (% F.S.*/10°C) <± 0.05 <± 0.05 <± 0.017 <± 0.015
Temperature coefficient of zero signal (% F.S.*/10°C) <± 0.035 <± 0.035 <± 0.025 <± 0.023
Nominal sensitivity (mV/V) 1.5 1.5 1.5 1.5
Sensitivity tolerance (%) <± 0.3 <± 0.3 <± 0.2 <± 0.2
Input resistance (ohm(s)) 350..700 ± 2 350..700 ± 2 350..700 ± 2 350..700 ± 2
Output resistance (ohm(s)) 350..700 ± 2 350..700 ± 2 350..700 ± 2 350..700 ± 2
Insulation resistance (50 V) (Mohm(s)) > 5000 > 5000 > 5000 > 5000
Reference excitation voltage (VDC)
 10 10 10 10
Permissible nominal range of excitation voltage (VDC) 3...12 3...12 3...12 3...12
Safe load limit (% F.S.*) 150 150 150 150
Breaking load (% F.S.*)
 >300 >300 >300 >300
Permissible dynamic loading (% F.S.*)
 50 50 50 50
Static lateral force limit (% F.S.*) 15 15 15 15

* F.S. : Full Scale.
** : 2 mV/V
Note: C 1.5 only available for capacities between 5 and 100 t.
Specifications subject to change without notice.

Datasheets
Manuals
  • MA-3100P_EN.pdf (434.4k) *
  • MA-3100P_FR.pdf (556.47k) *
Support

* You must be logged in to access these documents.

LOG IN

Create an account

Forgot your password?
