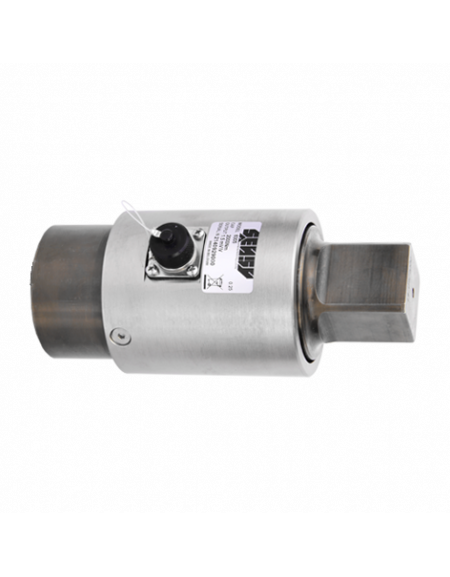

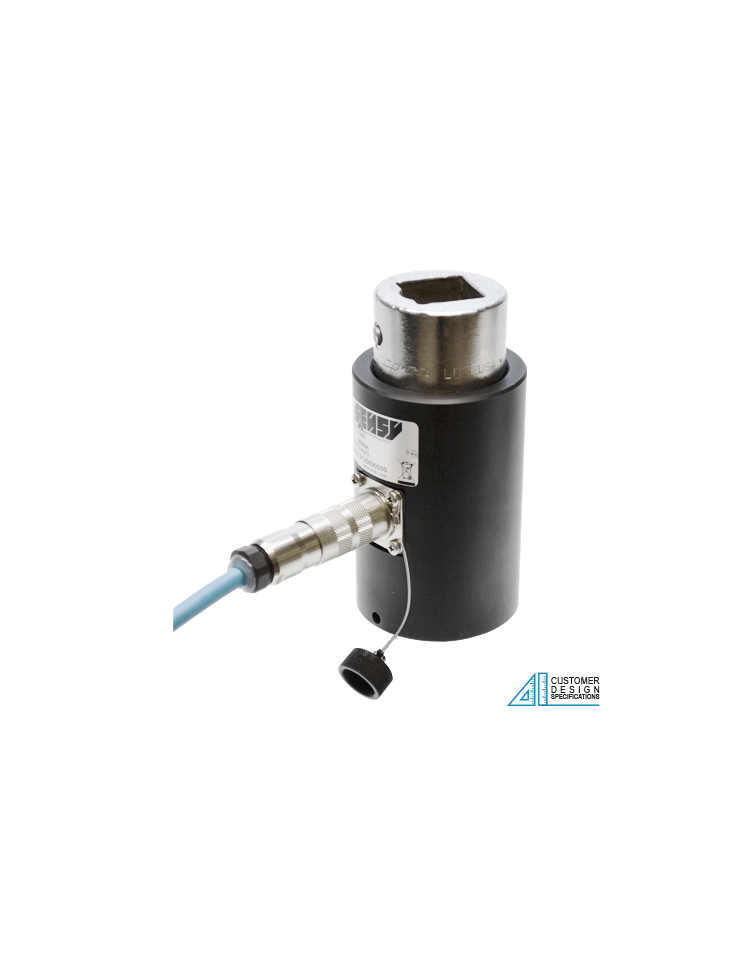

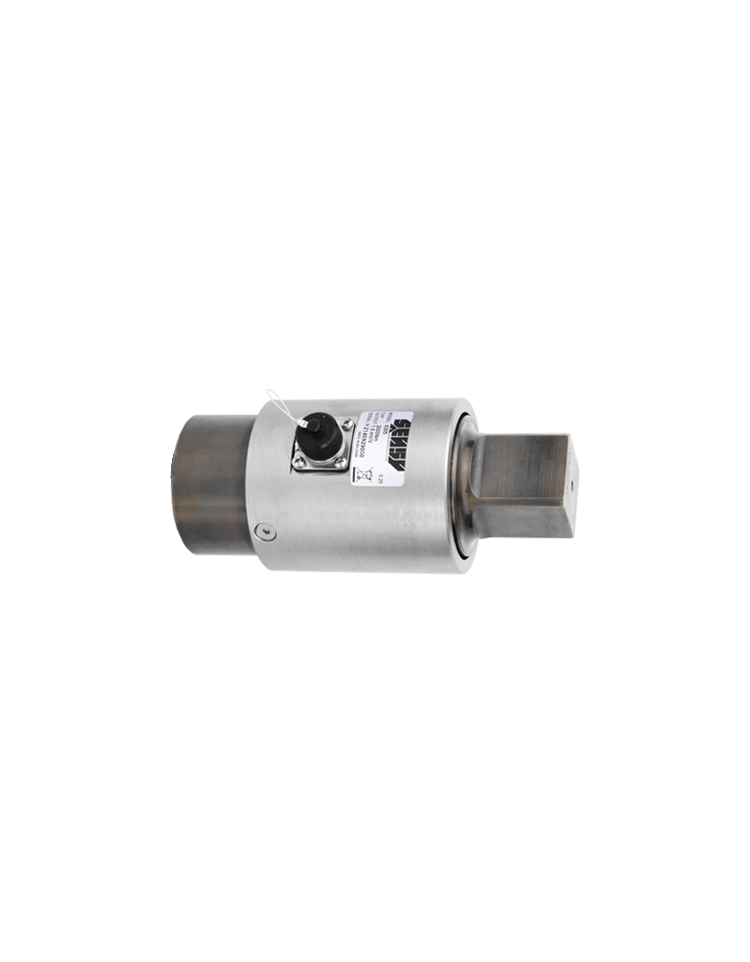

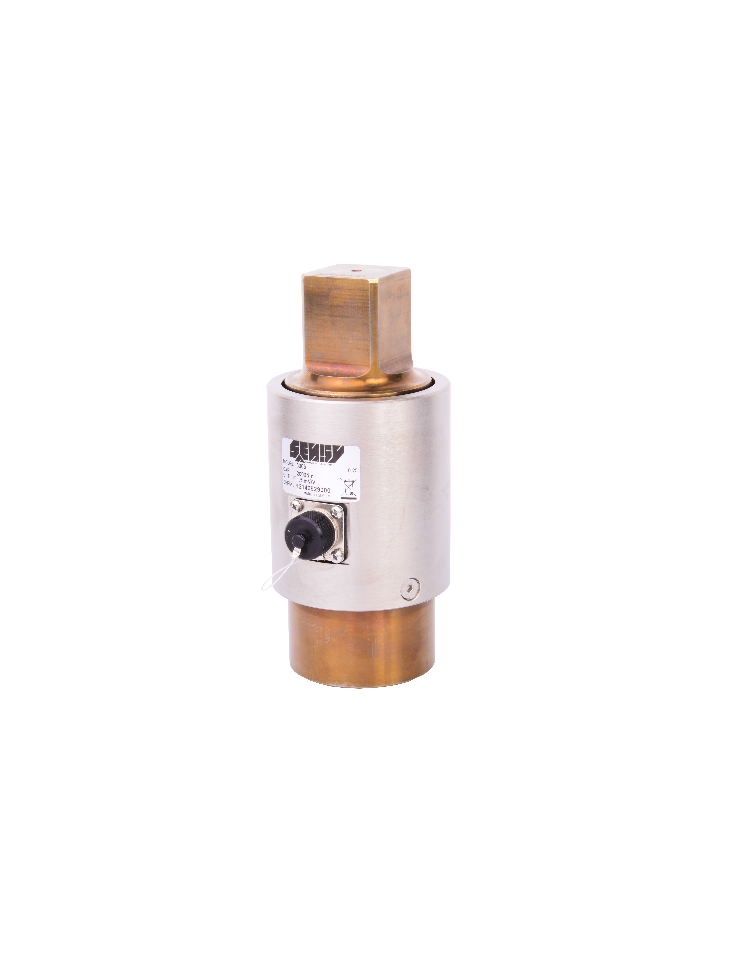

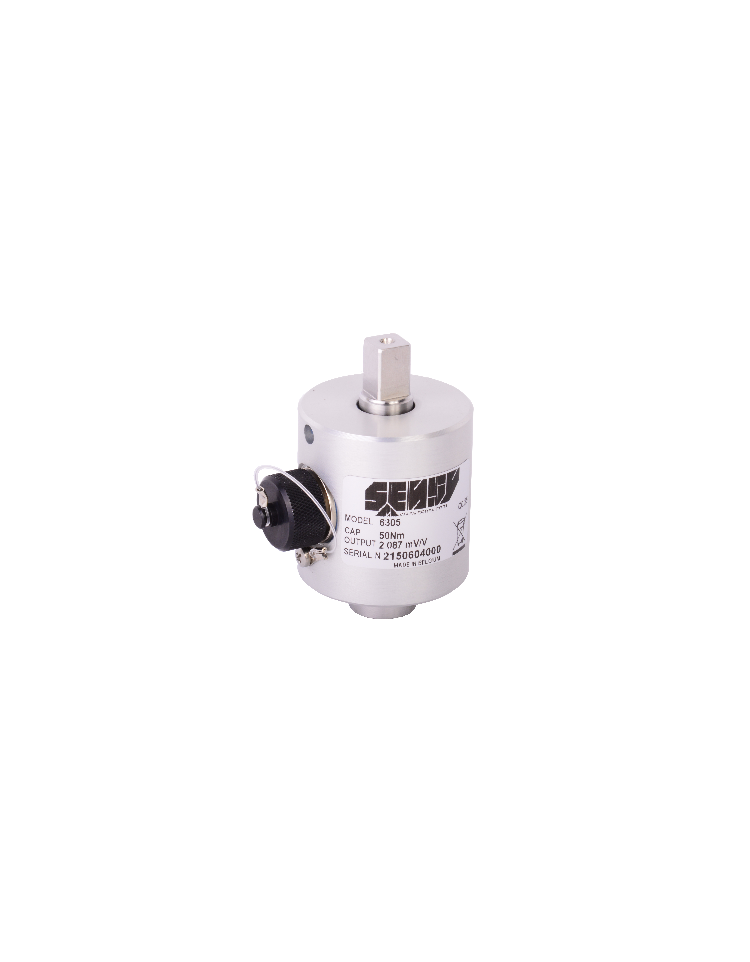

6305 non rotating torque meter for ratchet wrench 2000nm 0

REACTION TORQUE METERS FOR RATCHET WRENCH

ADD
TO COMPARE PDF
DATASHEET
CE ATEX

Non-rotating torque meters designed to be placed between ratchet and wrench.

 o Wide range of capacities: from 50 N·m to 20 kN·m
 o Easy to install (standardised wrenches)
 o Compact design
 o Protection class: IP54
 o Material: alloy steel
 o Cable length: 3 m (other lengths available on request)


AVAILABLE OPTIONS

AMPLIFIED-OUTPUT
DIGITAL-OUTPUT
MULTIPLE-MOMENTS
-50+180
Do you have
specific need ?
Add to basket
for quotation

0.25 %
Combined error (non-linearity + hysteresis) (% F.S.*) <± 0.25
Repeatability error (% F.S.*) <± 0.1
Creep error over 30 min. (% F.S.*) <± 0.1
Zero shift after loading (% F.S.*)
 <± 0.025
Reference temperature (°C) 23
Compensated temperature range (°C) -10...+45
Service temperature range (°C)
 -25...+70
Storage temperature range (°C)
 -50...+85
Temperature coefficient of the sensitivity (% F.S.*/10°C) <± 0.05
Temperature coefficient of zero signal (% F.S.*/10°C) <± 0.035
Zero balance (mV/V)
 ± 0.02
Nominal sensitivity (mV/V) 1.5
Sensitivity tolerance (%) <± 0.3
Input resistance (ohm(s)) 350 ± 2
Output resistance (ohm(s)) 350 ± 2
Insulation resistance (50 V) (Mohm(s)) > 5000
Reference excitation voltage (VDC)
 10
Permissible nominal range of excitation voltage (VDC) 3...12
Safe load limit (% F.S.*) 120
Breaking load (% F.S.*)
 >300
Permissible dynamic loading (% F.S.*)
 40
Static lateral force limit (% F.S.*) 10

* F.S. : Full Scale.
Specifications subject to change without notice.
