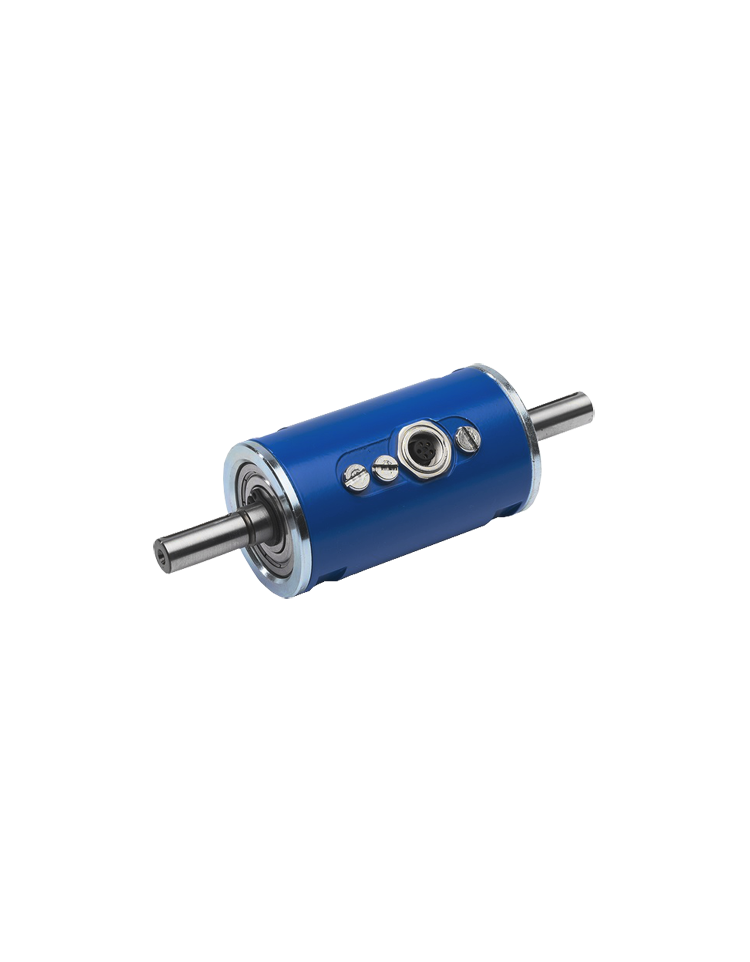

NON-CONTACT ROTARY TORQUE SENSORS
General purpose, low-cost, non-contact rotary torque sensors with square or round shaft.
o Bidirectional
o Cost effective solution
o Measurement range up to 500 N·m
o Rotating speed up to 5000 rpm
o Round or square shafts (see drawing)
o Integrated signal conditioning
o Analogue output signal (see Wiring table)
o Cable length: 5 m (other lengths available on request)
| 62100 | 62200 | |
|---|---|---|
| Shaft (-) | Square | Round with key stone |
| Combined error (non-linearity + hysteresis) (% F.S.*) | <± 1 | <± 1 |
| Repeatability error (% F.S.*) | <± 0.05 | <± 0.05 |
| Rotational signal uniformity (% F.S.*) | <± 1 | <± 1 |
| Compensated temperature range (°C) | +15...+35 | +15...+35 |
| Service temperature range (°C) | -40...+85 | -40 ... +85 |
| Storage temperature range (°C) | -40 ... +85 | -40 ... +85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | < 0.5 | < 0.5 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | < 0.5 | < 0.5 |
| Zero signal (V) | 2.5 | 2.5 |
| Safe load limit (% F.S.*) | 130 | 130 |
| Power supply (-) | 6...15 VDC | 6...15 VDC |
| Consumption (max.) (mA) | 10 | 10 |
| Nominal sensitivity (V) | ± 2 | ± 2 |
| Start-up current (mA) | < 40 | < 40 |
| Maximum rotational speed (rpm) | 1000 | 5000 |
| IP rating (-) | IP50 | IP50 |
*F.S. : Full Scale.
** : See individual calibration sheet.
Specification subject to change without notice.
