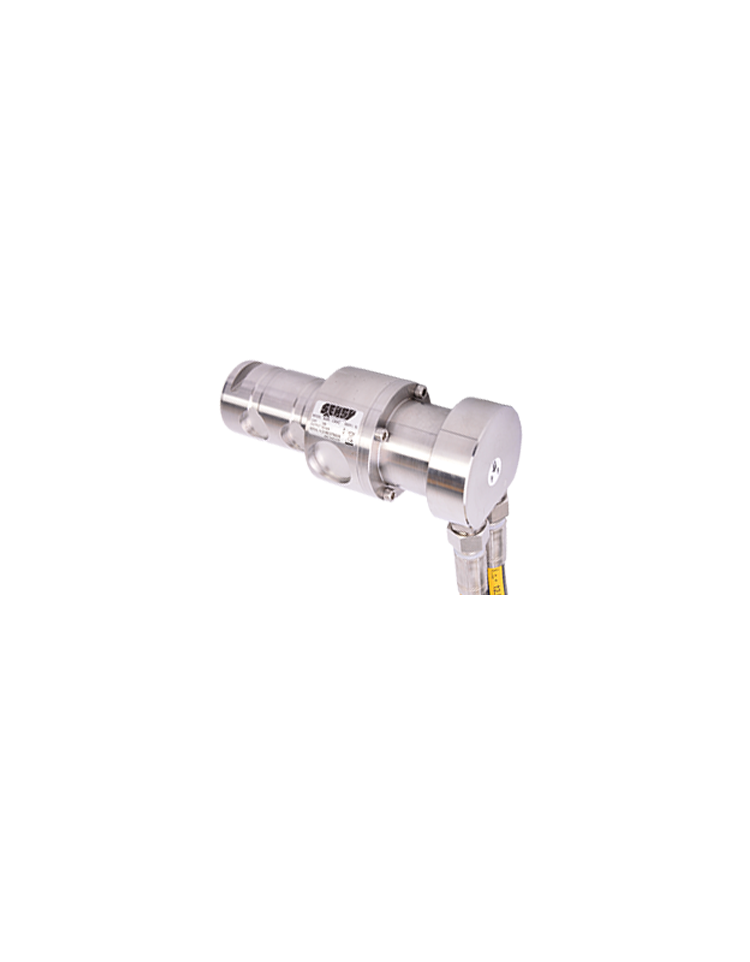

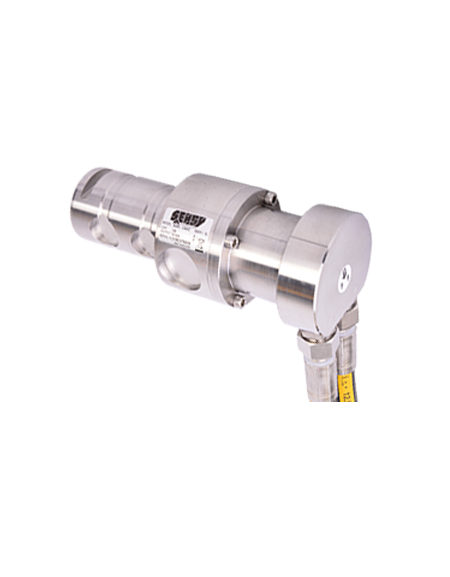

Custom load pin

Customised load pin with two redundant output signals mounted on a ship's mooring winch and designed to measure the force exerted on it.
The redundancy of the signals makes it possible to constantly monitor the relevance of the measurement and thus to significantly improve the reliability of the system.
The cables are protected by a hydraulic sheath providing sufficient protection in the marine environment both from the point of view of waterproofness and mechanical resistance.
Finally, for periodically replacing the cables we provided a connection via connectors mounted in a protective housing.

Specifications :

• Measurement range: 230kN
• Protection class : IP67 (marine)
• Connectors : Connectors protected by a waterproof housing
• Cables : Protected each by a hydraulic sheath
