ATEX/ECEx telemetry load cells transmitter

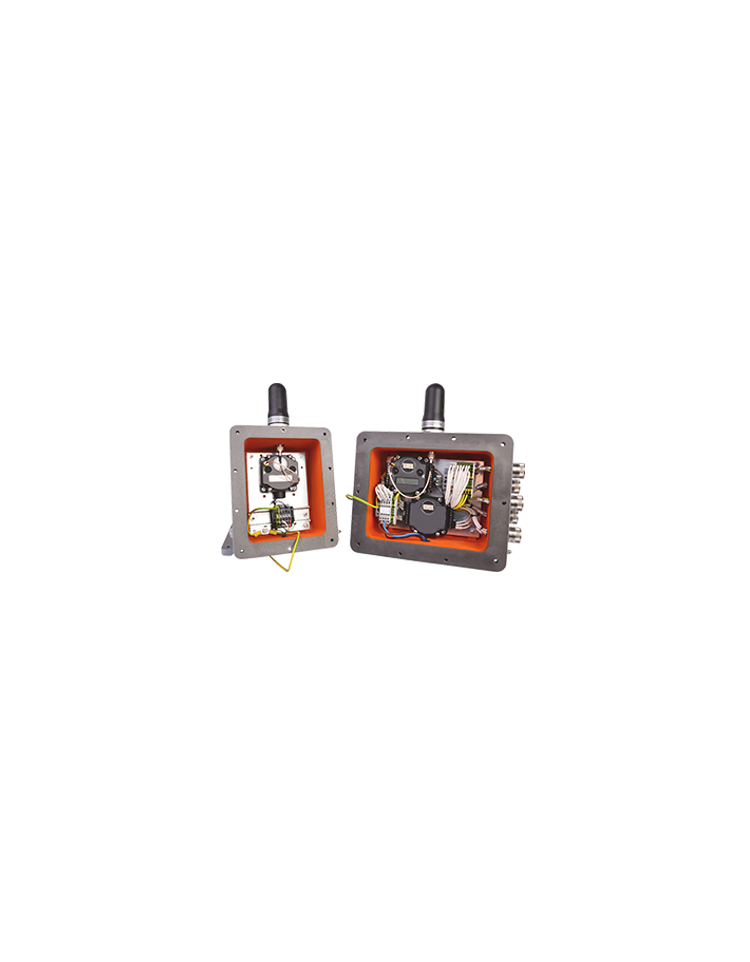

Transmitter and receiver mounted in ADF boxes for use in explosive areas.

Functions :

• Transmitter
  • Connected to 5 tensiometers measuring the force exerted on mooring slings
  • With mulitplexing system
  • Accuracy: ± 0,1 %
  • Inputs : 5 x 2 mV/V
  • Frequency : 2,4 GHz
  • Power : 63 mW
  • Range :1.000 m in free fied
  • Power supply :10..24 VDC
  • ADF housing : certified Eexd IIB T4
• Receiver
  • Output : RS485 (Modbus)
  • ADF box : Eexd IIB T4
• Software (Windows® compatble) on PC out of explosive area
  • Display of 5 forces in the form of bar graphs, the colour of which changes from green to red depending ion the level of each force
  • Sound alarm
  • Recording measurements
