Floor scales and platform scales

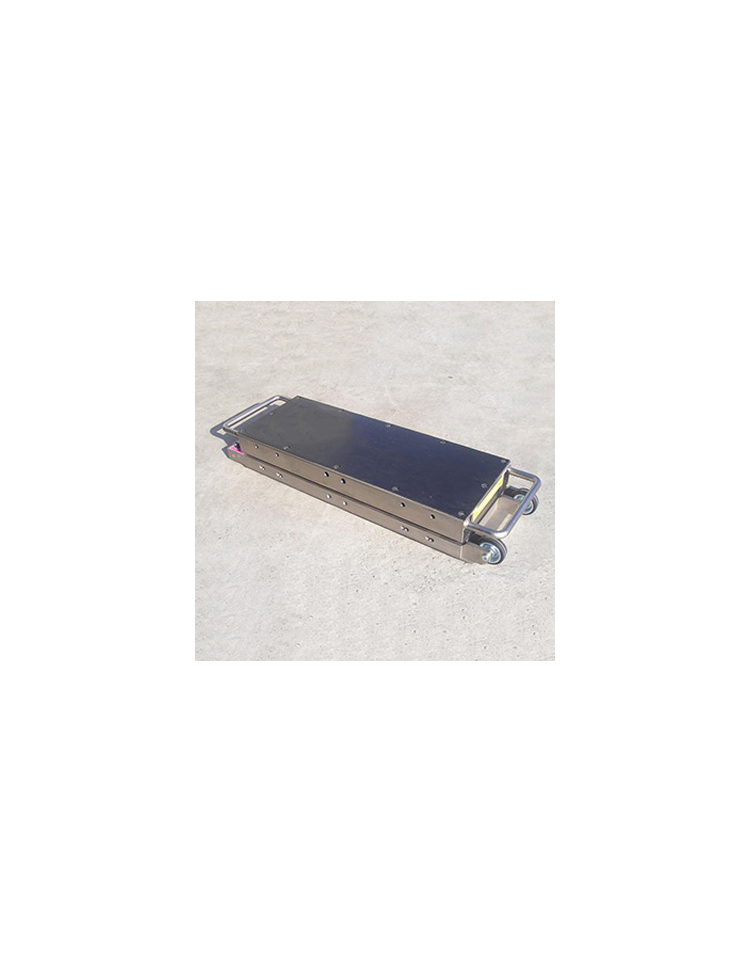

Bidirectionnal force tranducer for measuring the caracteristics of braking measurement systems used in technical control centres.

It enables the classification of roller brake testers by measuring the horizontal and vertical reaction forces exerted by vehicle wheels.

Specifications :

• Measurement ranges
  • Fz (vertical) : 40 kN
  • Fx (horizontal) : -12..0.. + 12 kN
• Accuracy: ± 1,5%
• Dimensions : 800 x 300 mm
• Weight  : 52 kg
