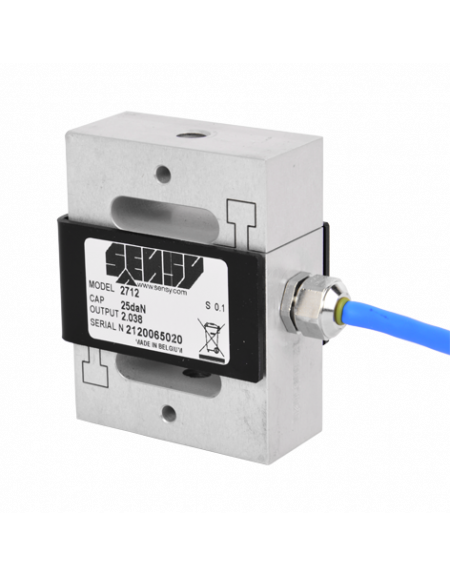

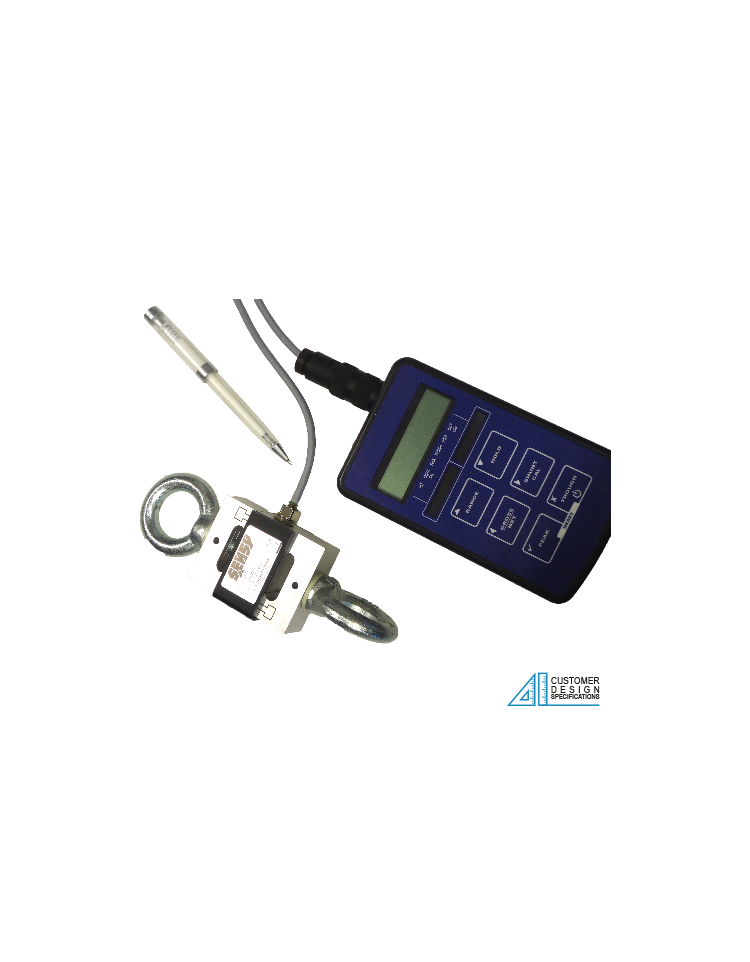

STANDARD REFERENCE FORCE TRANSDUCERS IN TENSION AND COMPRESSION

Reference :

Standard reference force transducers specially designed according to the ISO 376 standard (classes 1, 0,5 and 00).

o Wide range of capacities
o Tension and / or compression (universal)
o Compact design
o Overload protection: see drawing table
o Complete range of load accessories
o Material: anodised aluminium alloy
o Cable length: 3 m (other lengths available on request)

AVAILABLE OPTIONS

	1	05	00
Relative reversibility error (% M.V.**)	<± 0.3	<± 0.15	<± 0.07
Relative repeatability error with rotation (% M.V.**)	<± 0.2	<± 0.1	<± 0.05
Relative repeatability error without rotation (% M.V.**)	<± 0.1	<± 0.05	<± 0.025
Stabilization time after power excitation supply (s)	200...600	200...600	200...600
Creep error over 30 min. (% F.S.*)	<± 0.1	<± 0.05	<± 0.025
Zero shift after loading (% F.S.*)	<± 0.05	<± 0.025	<± 0.012
Reference temperature (°C)	20	20	20
Compensated temperature range (°C)	-10...+45	-10...+45	-10...+45
Service temperature range (°C)	-30...+70	-30...+70	-30...+70
Storage temperature range (°C)	-50...+85	-50...+85	-50...+85
Temperature coefficient of the sensitivity (% F.S.*/10°C)	<± 0.035	<± 0.035	<± 0.015
Temperature coefficient of zero signal (% F.S.*/10°C)	<± 0.03	<± 0.03	<± 0.023
Zero balance (mV/V)	± 0.02	± 0.02	± 0.02
Nominal sensitivity (mV/V)	2	2	2
Input resistance (ohm(s))	350 ± 2	350 ± 2	350 ± 2
Output resistance (ohm(s))	350 ± 2	350 ± 2	350 ± 2
Insulation resistance (50 V) (Mohm(s))	> 5000	> 5000	> 5000
Reference excitation voltage (VDC)	10	10	10
Permissible nominal range of excitation voltage (VDC)	3...12	3...12	3...12
Safe load limit (% F.S.*)	110	110	110
Breaking load (% F.S.*)	>300	>300	>300

* : Full Scale of the force transducer.
** : M.V. is the measured value. The mentioned values are only valid if M.V. >= 10 % of full scale.
Specifications subject to change without notice.
