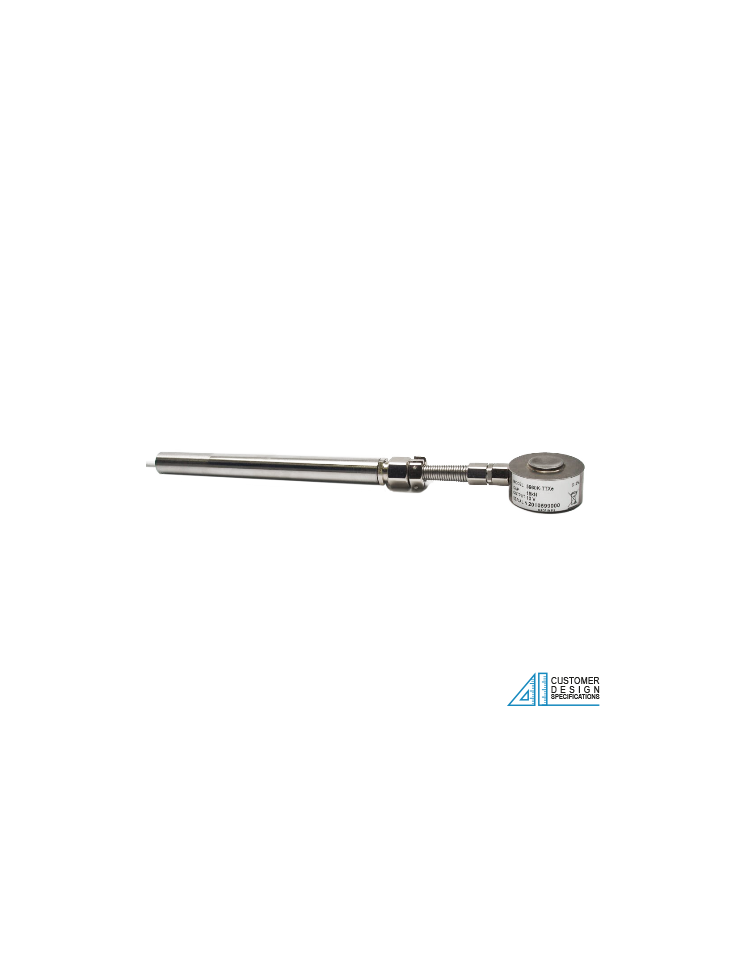

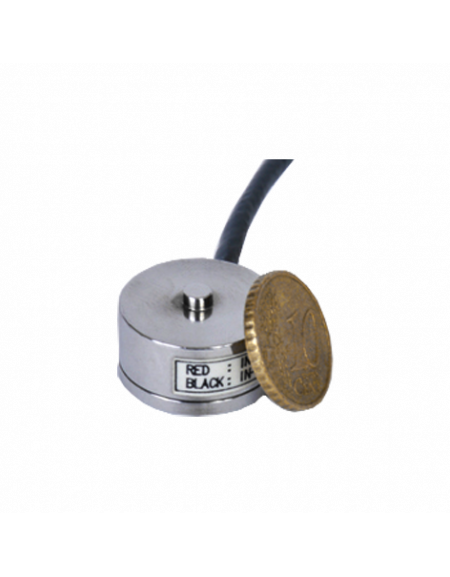

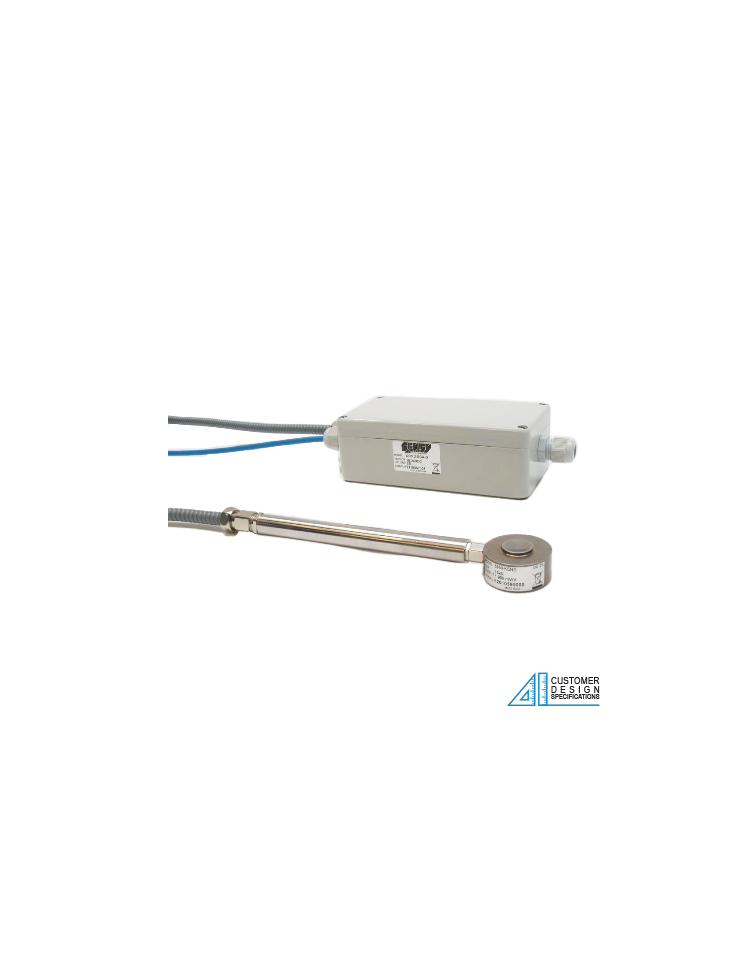

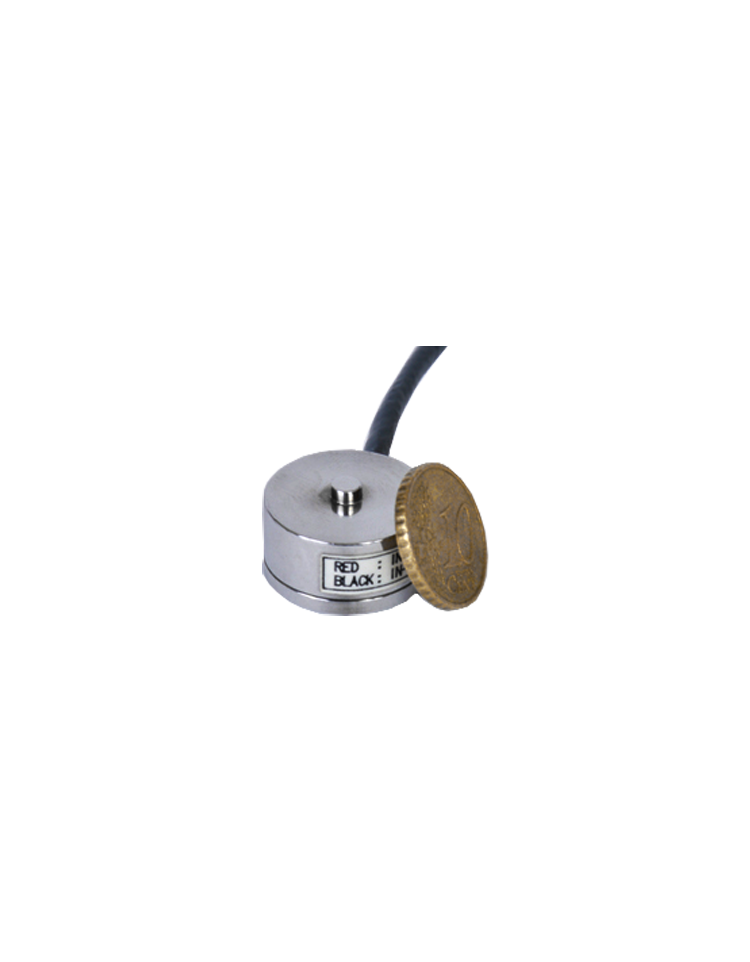

MINIATURE COMPRESSION LOAD CELLS
Sealed and compact compression sensors.
o Protection class: IP65
o Very competitive prices
o Material:
- stainless steel (5960)
- anodised aluminium alloy (5962)
o Cable length: 1.5 m (other lengths available on request)
AVAILABLE OPTIONS
| 1 % | |
|---|---|
| Combined error (non-linearity + hysteresis) (% F.S.*) | <± 1 |
| Repeatability error (% F.S.*) | <± 0.5 |
| Creep error over 30 min. (% F.S.*) | <± 0.25 |
| Zero shift after loading (% F.S.*) | <± 0.2 |
| Reference temperature (°C) | 23 |
| Compensated temperature range (°C) | -10...+45 |
| Service temperature range (°C) | -25...+70 |
| Storage temperature range (°C) | -50...+85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | <± 0.2 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | <± 0.2 |
| Zero balance (mV/V) | ± 0.05 |
| Nominal sensitivity (mV/V) | 1.5 |
| Input resistance (ohm(s)) | 1000 ± 3 |
| Output resistance (ohm(s)) | 1000 ± 3 |
| Insulation resistance (50 V) (Mohm(s)) | > 5000 |
| Reference excitation voltage (VDC) | 5 |
| Permissible nominal range of excitation voltage (VDC) | 3..10 |
| Safe load limit (% F.S.*) | 120 |
| Breaking load (% F.S.*) | >300 |
| Permissible dynamic loading (% F.S.*) | 40 |
* F.S. : Full Scale.
Specifications subject to change without notice.
