INDICATOR FOR STANDARD REFERENCE FORCE TRANSDUCERS
![CE CE](../../../img/su/1.jpg)
![ISO 376 ISO 376](../../../img/su/5.jpg)

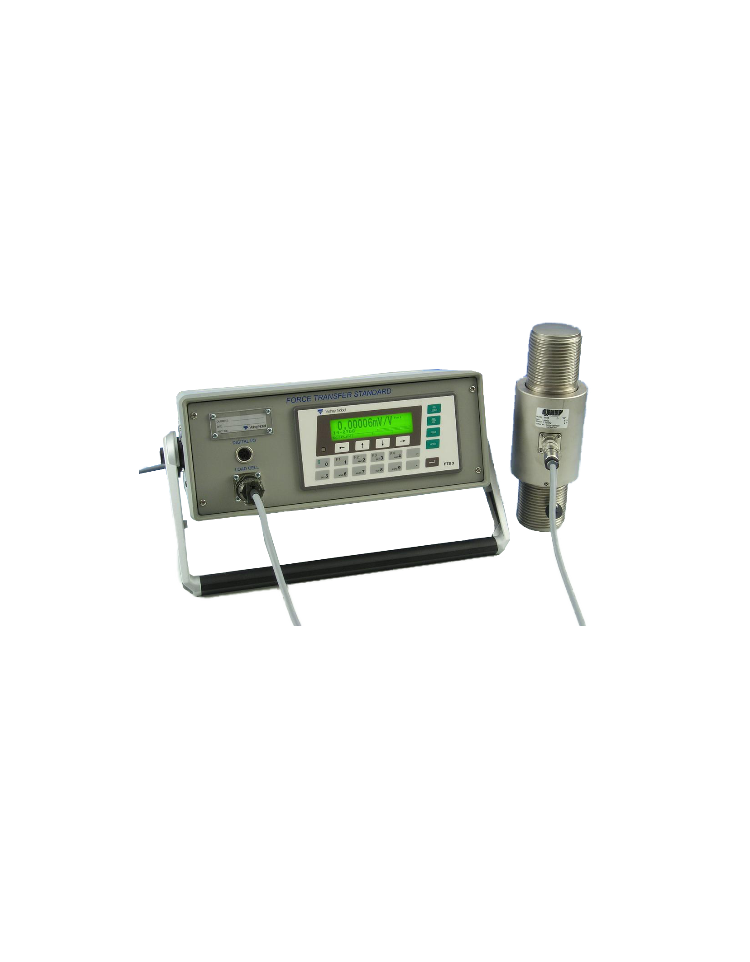

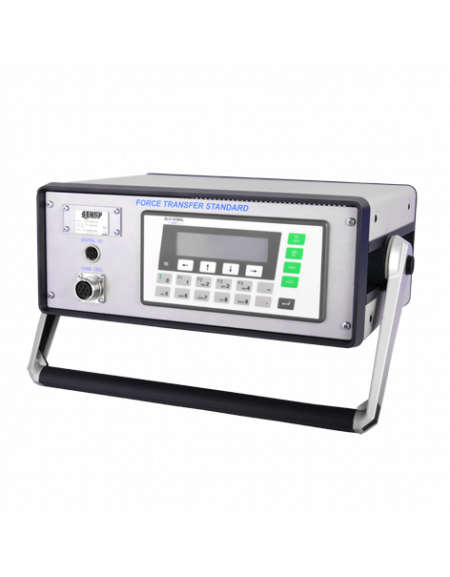

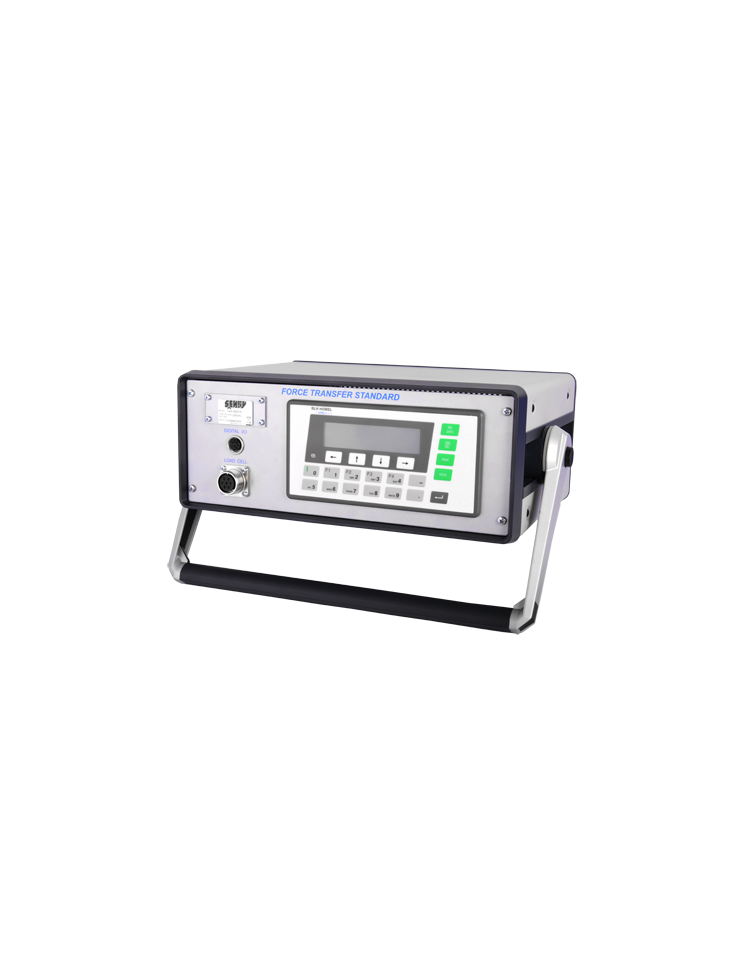

The INDI-ISO376 is a very high-accuracy portable indicator designed to be used in combination with standard reference force transducers with accuracy classes 1, 0,5 or 00 according to ISO 376 standard.
o High accuracy: 0.01%
o High resolution
o 6-wire connection
AVAILABLE OPTIONS
- acquisition and management softwareINDI-ISO376 | |
---|---|
Type (-) | Strain-gauge input (mV/V) |
Accuracy class (-) | Classes 1, 05 and 00 compatible |
Input range (-) | ± 3.3 mV/V |
Sensor excitation (-) | 10 VDC |
Non-linearity error (% F.S.*) | <= 0.002 |
Display (-) | 6 digits |
Internal resolution (-) | 10 000 / 1 000 000 div. |
Service temperature range (°C) | -10...+50 |
Storage temperature range (°C) | -25...+85 |
Temperature coefficient of the sensitivity (% F.S.*/10°C) | < 0.0015 |
Temperature coefficient of zero signal (% F.S.*/10°C) | < 0.001 |
Power supply (-) | 110 / 240 VAC |
IP rating (-) | IP54 |
*F.S. : Full Scale.
Specifications subject to change without notice.
