CRANE OVERLOAD PROTECTION ELECTRONICS FOR 2 CHANNELS + SUM

Reference :

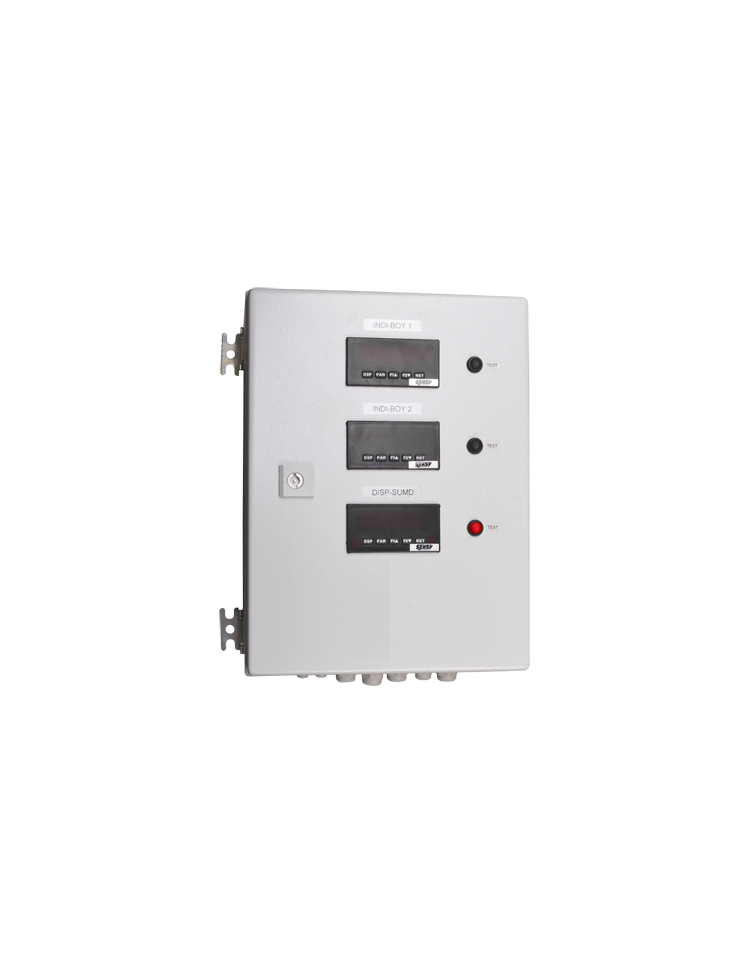

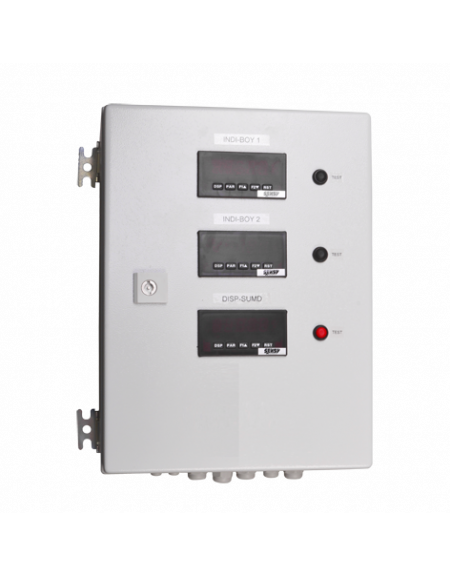

The CABIN-2IB1SUMD and CABIN-2DB1SUMD are crane overload protection systems designed to manage 2 hoisting devices as well as the sum of the loads.

    x = input:
           - I: mV/V or
           - D: process input 4(0)...20 mA
o Display of hoisted loads and input signals
o Monitoring system of load cell integrity and electronics (fail safe)

AVAILABLE OPTIONS

- analogue output 4(0)...20 mA or 0...10 V
- RS-232, RS-485, USB or fieldbus capabilities
- NEMA 4X /IP67 (transparent protection cover - option "COVER PAX")
- power supply: 48 VAC / 24 VDC (see CABIN-2xB1SUMD2 products)
- stainless steel cabinet

Data Sheet
Download

	CABIN-2IB1SUMD	CABIN-2IB1SUMD12	CABIN-2DB1SUMD	CABIN-2DB1SUMD12
Type (-)	Load limiter for dual 4..20mA load cell , Load limiter for dual 4...20 mA load cell , Load limiter for dual 4...20 mA load cell, Load limiter for dual 4..20mA load cell	Load limiter for dual 4..20mA load cell , Load limiter for dual 4...20 mA load cell , Load limiter for dual 4...20 mA load cell, Load limiter for dual 4..20mA load cell	Load limiter for dual 4..20mA load cell , Load limiter for dual 4...20 mA load cell , Load limiter for dual 4...20 mA load cell, Load limiter for dual 4..20mA load cell	Load limiter for dual 4..20mA load cell , Load limiter for dual 4...20 mA load cell , Load limiter for dual 4...20 mA load cell, Load limiter for dual 4..20mA load cell
Input range (-)	± 24 mVDC / ± 240 mVDC	± 24 mVDC / ± 240 mVDC	20 mA (-2 to +26 mA)	20 mA (-2 to +26 mA)
Sensor excitation (-)	10 VDC @ 125 mA (max)	10 VDC @ 125 mA (max)	24 VDC ± 5 % @ 50 mA (max)	24 VDC ± 5 % @ 50 mA (max)
Display (-)	3 x 5 digits (14.2 mm)	3 x 5 digits (14.2 mm)	3 x 5 digits (14.2 mm)	3 x 5 digits (14.2 mm)
Accuracy (% F.S.*)	0.5	0.5	0.5	0.5
Service temperature range (°C)	0...+50	0...+50	0...+50	0...+50
Storage temperature range (°C)	-40...+60	-40...+60	-40...+60	-40...+60
Power supply (-)	85...250 VAC, 50/60 Hz (45 VA)	11...36 VDC (33 W) 24 VAC (45 VA)	85...250 VAC, 50/60 Hz (45 VA)	11...36 VDC (33 W) 24 VAC (45 VA)
Qty of relay (-)	2 x 3 + 4	2 x 3 +4	2 x 3 + 4	2 x 3 + 4
Relay type (-)	"Form A"- potential free	"Form A"- potential free	"Form A"- potential free	"Form A"- potential free
Contact rating (-)	3 A @ 250 VAC / 30 VDC	3 A @ 250 VAC / 30 VDC	3 A @ 250 VAC / 30 VDC	3 A @ 250 VAC / 30 VDC
IP rating (-)	IP54	IP54	IP54	IP54

*F.S. : Full Scale.
** : 5 VDC @ 65 mA max (jumper selectable).
*** : we recommend the CABIN-2xB1SUMD2 for use in 24 VDC.
Specifications subject to change without notice.
