Redundant load cells

Load cells and torque transducers usually have only one measuring channel. In most cases, this is sufficient to meet the requirements.

However, to improve measurement reliability or to better suit the application, it may be interesting, or even compulsory, to get redundant measurement channels by using several additional Wheatstone bridges to measure the same deformation.

Here are some examples:

• Subsea force transducer with long-term inaccessibility with 2 Wheatstone bridges, 2 amplifiers and 2 cables to create a back-up (second) channel in case the first one fails.
• SIL3 (IEC / EN 61508) certified handling system including a load pin with 2 amplified Wheatstone bridges (4-20 mA) connected to a safety PLC constantly checking the consistency of both these signals.
• Load cell with 3 channels: one connected to overload protection electronics, the second to a PLC and the third to a data logger.
• Torque sensor with an analogue signal (4-20 mA) for connection to a local PLC and a digital signal (RS-485) for connection to a field bus.
• etc.

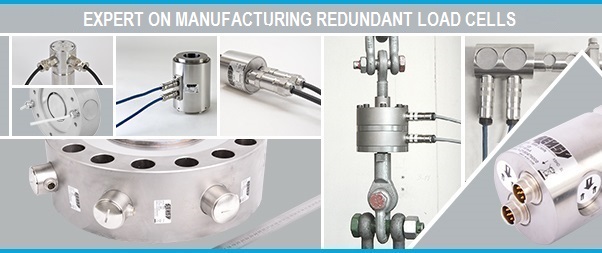

Thus, among many available options, SENSY regularly delivers load cells, load pins, force transducers or torque sensors, all with several redundant measuring channels guaranteeing higher safety and reliability levels. This new complex architecture meets the new safety and security requirements required for modern force measurement and control systems.
